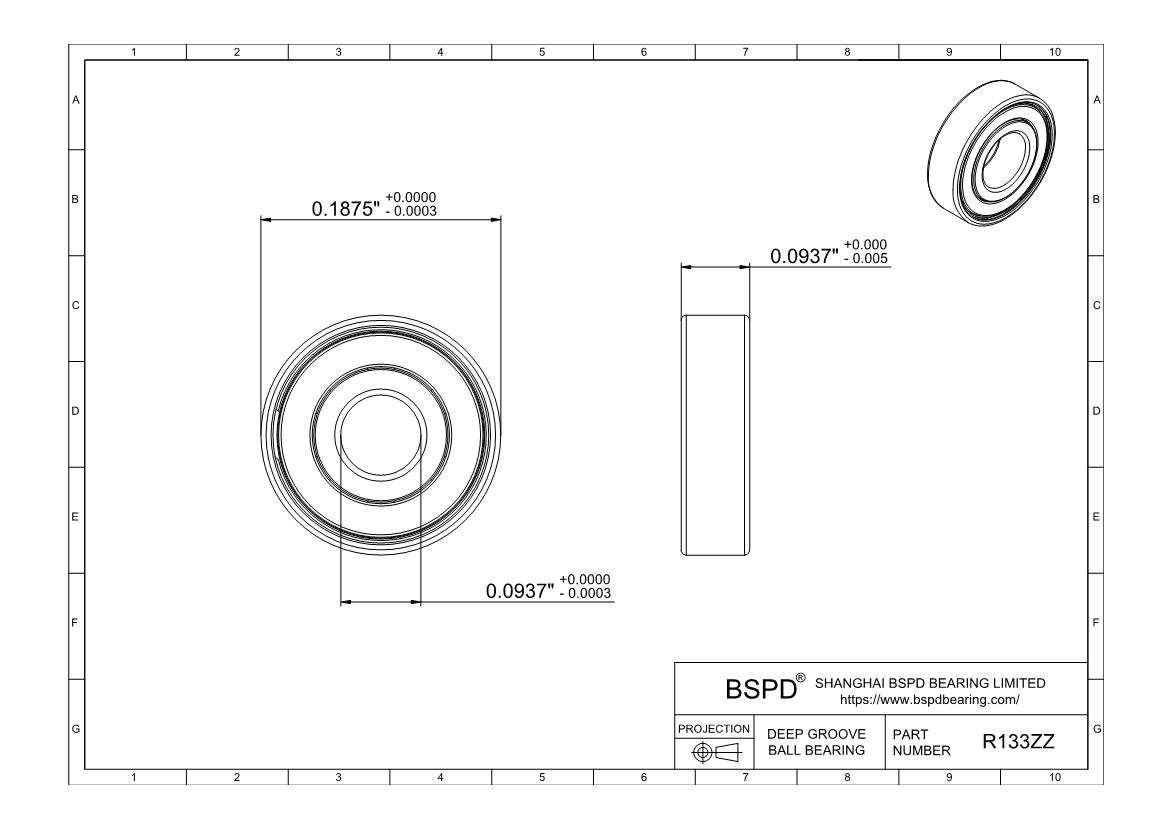

SR133ZZ
AISI440C Stainless Steel Ball Bearings
Dimensions: Bore (Inner) Diameter: 0.0938"； Outer Diameter: 0.1875"； Width (Thickness): 0.0937";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Shielded |
| Part Number | SR133zz |
| For Shaft Diameter | 3/32" |
| Bore Dia (d) | 3/32" | 2.381 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| For Housing ID | 3/16" |
| Outer Dia (D) | 3/16" | 4.763 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Width (B) | 0.0937" | 2.38 mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 440C Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Cage Material | 304 Stainless Steel |
| Seals Material | 304 Stainless Steel |
| Dynamic radial (Newtons) | 112.122 |
| Static radial (Newtons) | 40.041 |
| Max Speed (X1000 RPM) | 85.5 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.003mm to 0.018mm |
| RoHS | Compliant |
| Weight (g) | 0.15 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Stainless Steel Ball Bearings SR133ZZ ? AISI440C Stainless Steel Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
