SCH710-PP
Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 0.4375"； Outer Diameter: 0.6875"； Width (Thickness): 0.625";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Open |
| System of Measurement | Inch |
| Seal Type | Double seals |
| Part Number | SCH710-PP |
| For Shaft Diameter | 7/16 " |
| Bore Dia (d) | 7/16 " | 11.1125 mm |

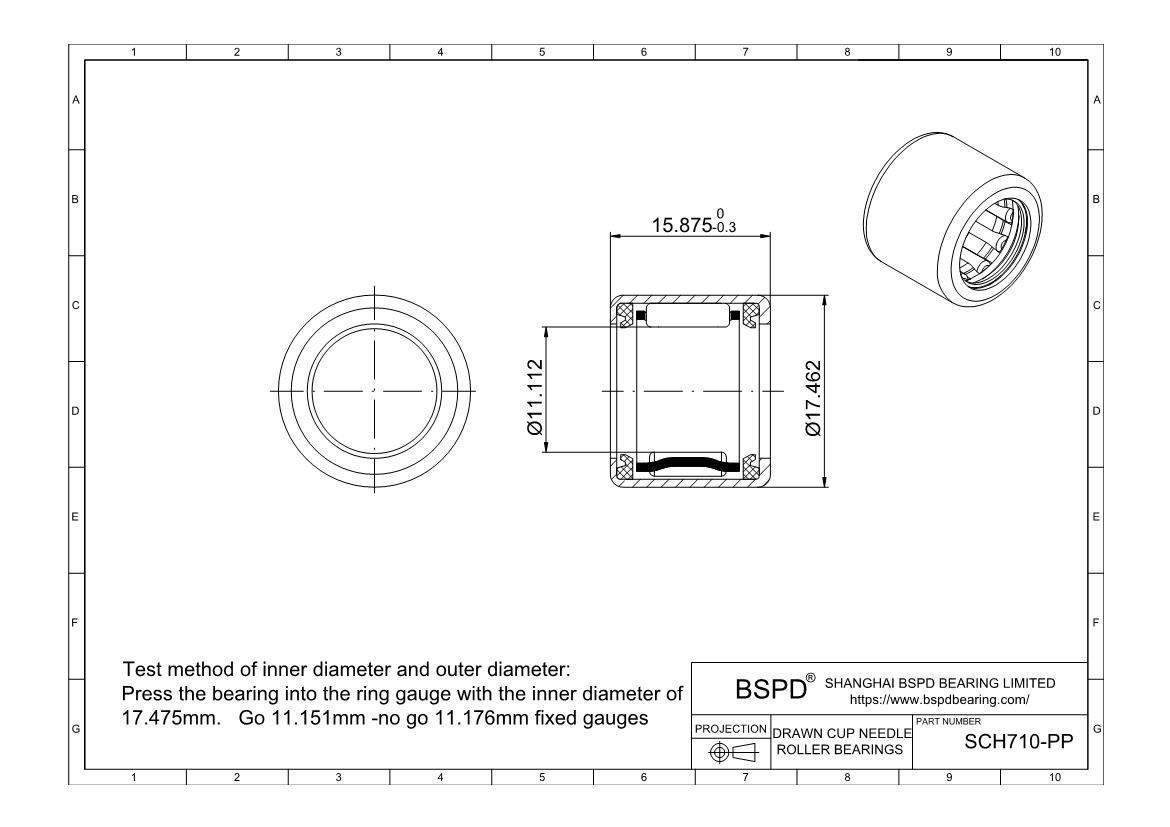

| Bore Dia Tolerance | Refer to note on the right drawing |
| For Housing ID | 17.462mm |
| Outer Dia (D) | 0.6875" | 17.462mm |
| Outer Dia Tolerance | Not Rated |
| Width (B) | 0.625" | 15.875mm |
| Width Tolerance | -0.01" to 0" |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 7900 N |
| Static Load Rating (Cor) (Newtons) | 8200 N |
| Max Speed (Grease) (RPM) | 19600 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 11 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
