SCH2020-PP
Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 1.25"； Outer Diameter: 1.625"； Width (Thickness): 1.25";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Open |
| System of Measurement | Inch |
| Seal Type | Double seals |
| Part Number | SCH2020-PP |
| For Shaft Diameter | 1.25" |
| Bore Dia (d) | 1.25" | 31.75 mm |

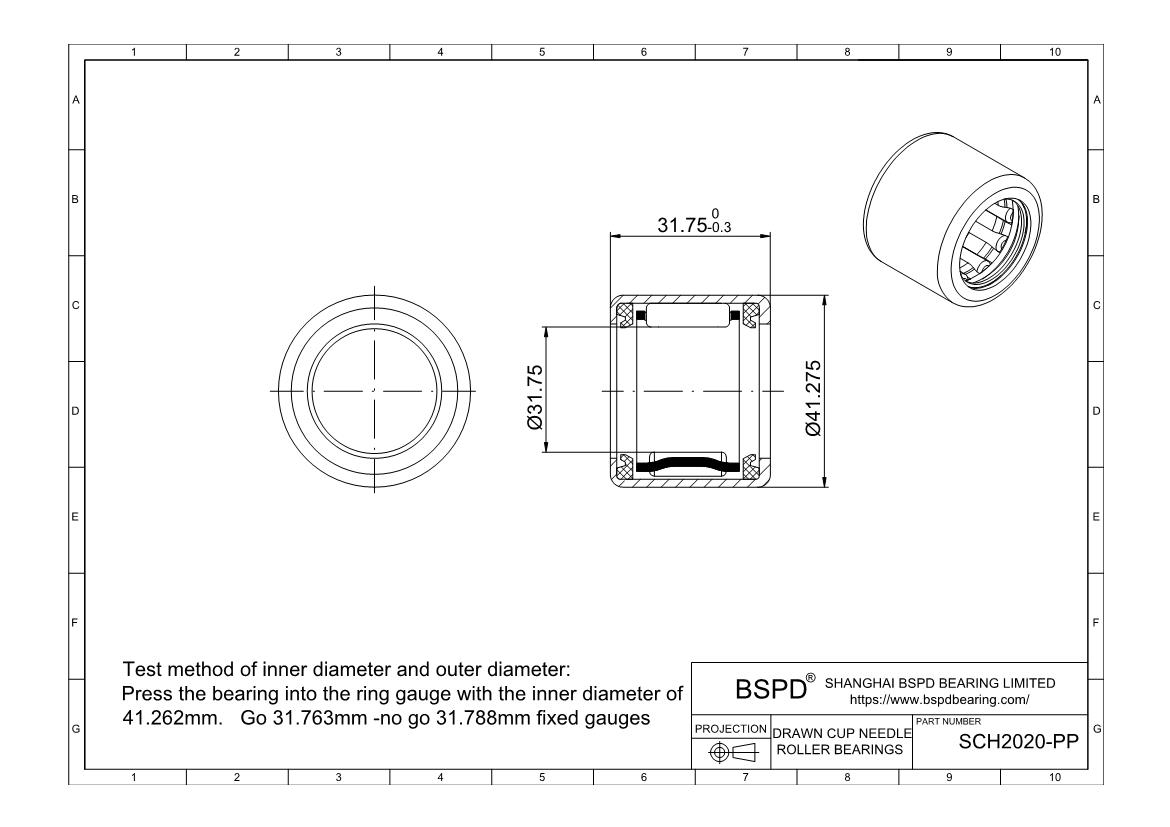

| Bore Dia Tolerance | Refer to note on the right drawing |
| For Housing ID | 41.275mm |
| Outer Dia (D) | 1.625" | 41.275mm |
| Outer Dia Tolerance | Not Rated |
| Width (B) | 1.25" | 31.75mm |
| Width Tolerance | -0.01" to 0" |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 36000 N |
| Static Load Rating (Cor) (Newtons) | 58000 N |
| Max Speed (Grease) (RPM) | 7700 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 87 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
