SCH2018-P Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 1.25"； Outer Diameter: 1.625"； Width (Thickness): 1.125";

SCH2018-P
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
End Open
System of Measurement Inch
Seal Type Single seal
Part Number SCH2018-P
For Shaft Diameter 1.25"
Bore Dia (d) 1.25" | 31.75 mm

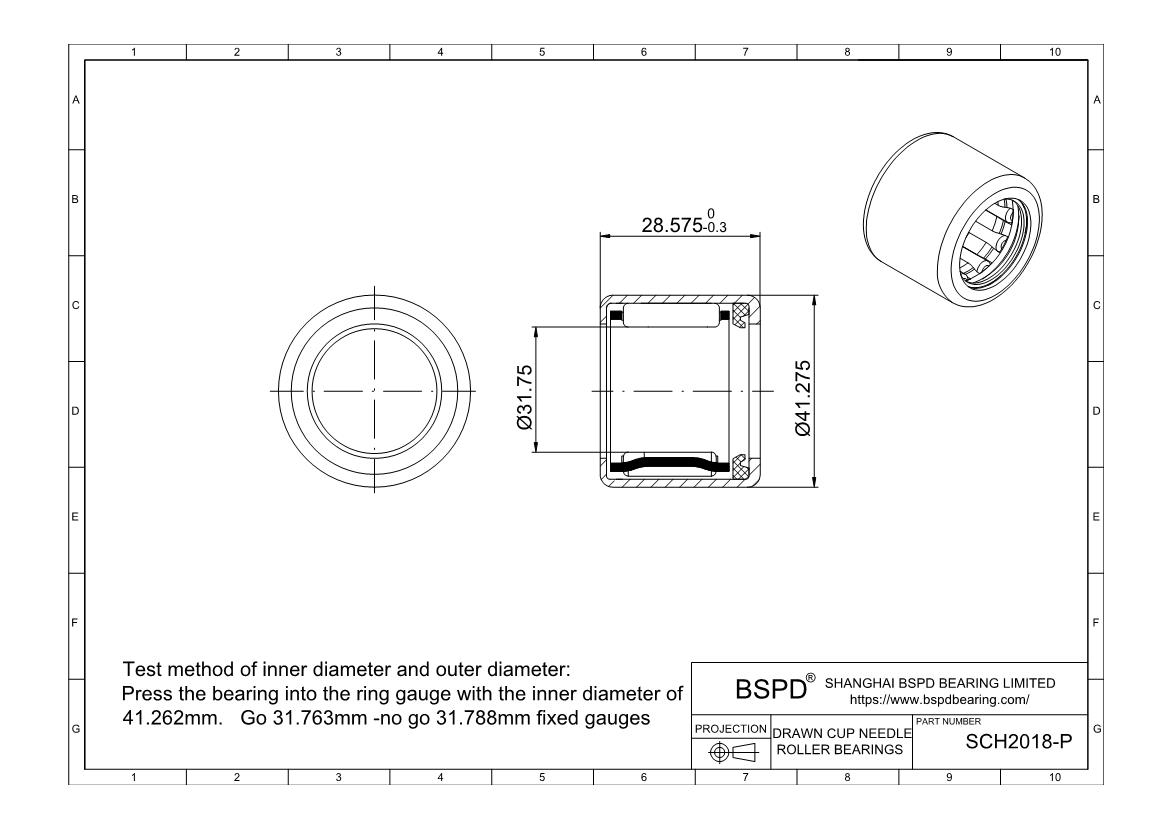

Bore Dia Tolerance Refer to note on the right drawing
For Housing ID 41.275mm
Outer Dia (D) 1.625" | 41.275mm
Outer Dia Tolerance Not Rated
Width (B) 1.125" | 28.575mm
Width Tolerance -0.01" to 0"
Ring Material steel
Ball Material steel
Cage Material steel
Dynamic Load Rating (Cr) (Newtons) 36500 N
Static Load Rating (Cor) (Newtons) 58000 N
Max Speed (Grease) (RPM) 7900
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 76
SCH2018-P
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings SCH2018-P ? Drawn Cup Needle Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
