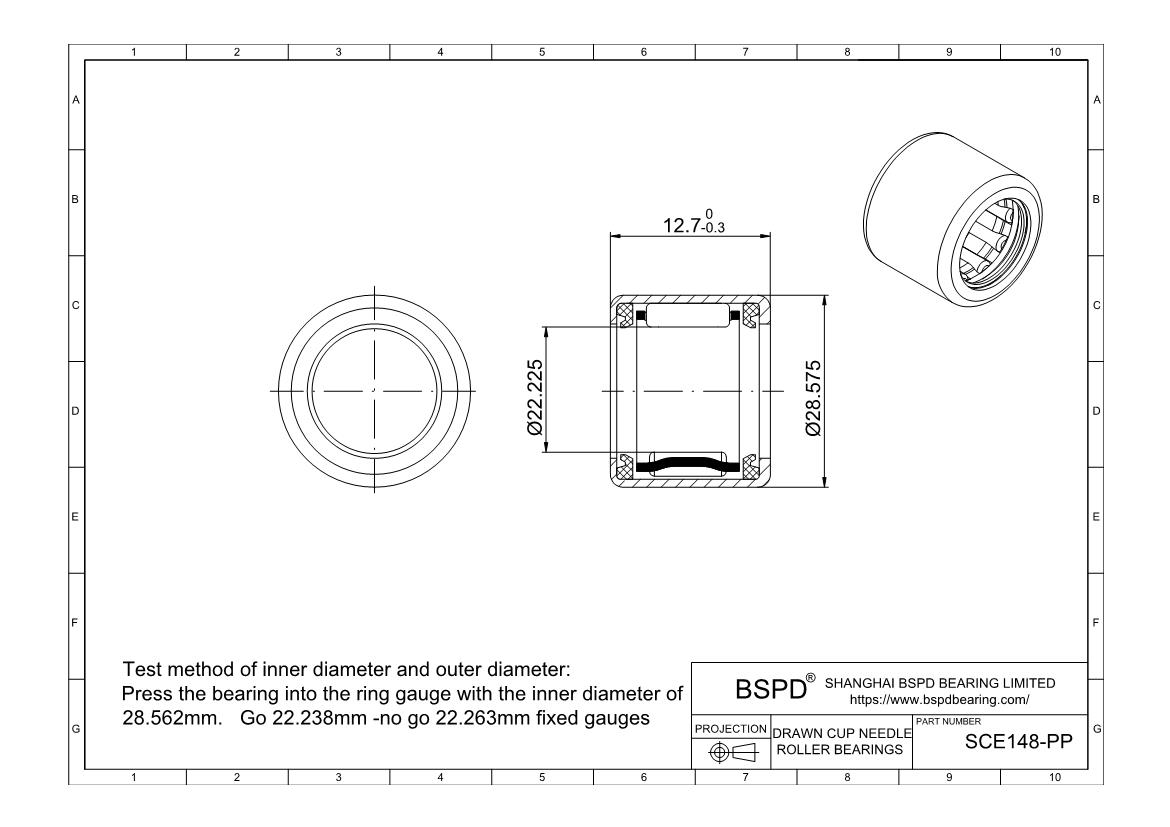

SCE148-PP
Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 0.875"； Outer Diameter: 1.125"； Width (Thickness): 0.5";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Open |
| System of Measurement | Inch |
| Seal Type | Double seals |
| Part Number | SCE148-PP |
| For Shaft Diameter | 7/8 " |
| Bore Dia (d) | 7/8 " | 22.225 mm |
| Bore Dia Tolerance | Refer to note on the right drawing |
| For Housing ID | 28.575mm |
| Outer Dia (D) | 1.125" | 28.575mm |
| Outer Dia Tolerance | Not Rated |
| Width (B) | 0.5" | 12.7mm |
| Width Tolerance | -0.01" to 0" |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 8200 N |
| Static Load Rating (Cor) (Newtons) | 10700 N |
| Max Speed (Grease) (RPM) | 11400 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 16 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings SCE148-PP ? Drawn Cup Needle Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
