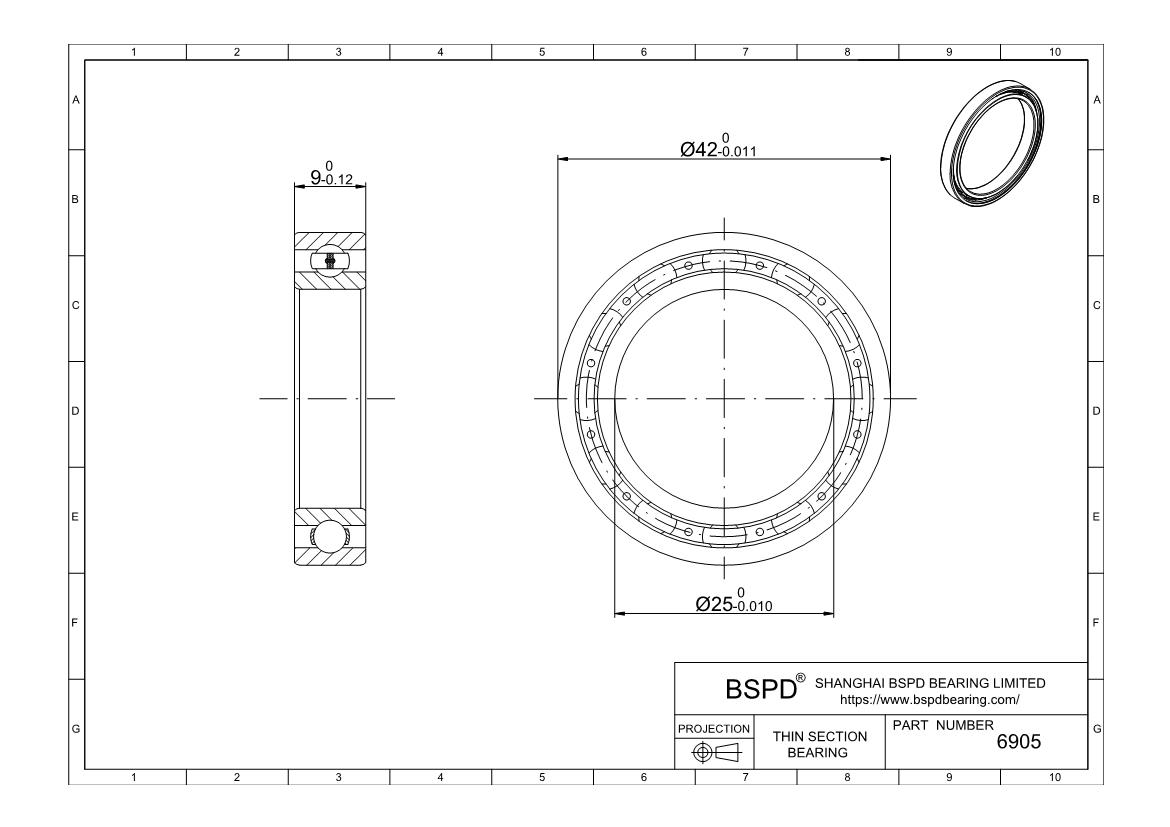

S6905
AISI440C Stainless Steel Ball Bearings
Dimensions: Bore (Inner) Diameter: 25 mm； Outer Diameter: 42 mm； Width (Thickness): 9 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Part Number | S6905 |
| For Shaft Diameter | 25mm |
| Bore Dia (d) | 25mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| For Housing ID | 42mm |
| Outer Dia (D) | 42mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width (B) | 9mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 440C Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Cage Material | 304 Stainless Steel |
| Seals Material | / |
| Dynamic radial (Newtons) | 6309 |
| Static radial (Newtons) | 4095 |
| Max Speed (X1000 RPM) | 17.1 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.006mm to 0.020mm |
| RoHS | Compliant |
| Weight (g) | 47 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Stainless Steel Ball Bearings S6905 ? AISI440C Stainless Steel Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
