S316-R155ZZ
AISI316L Stainless Steel Ball Bearings

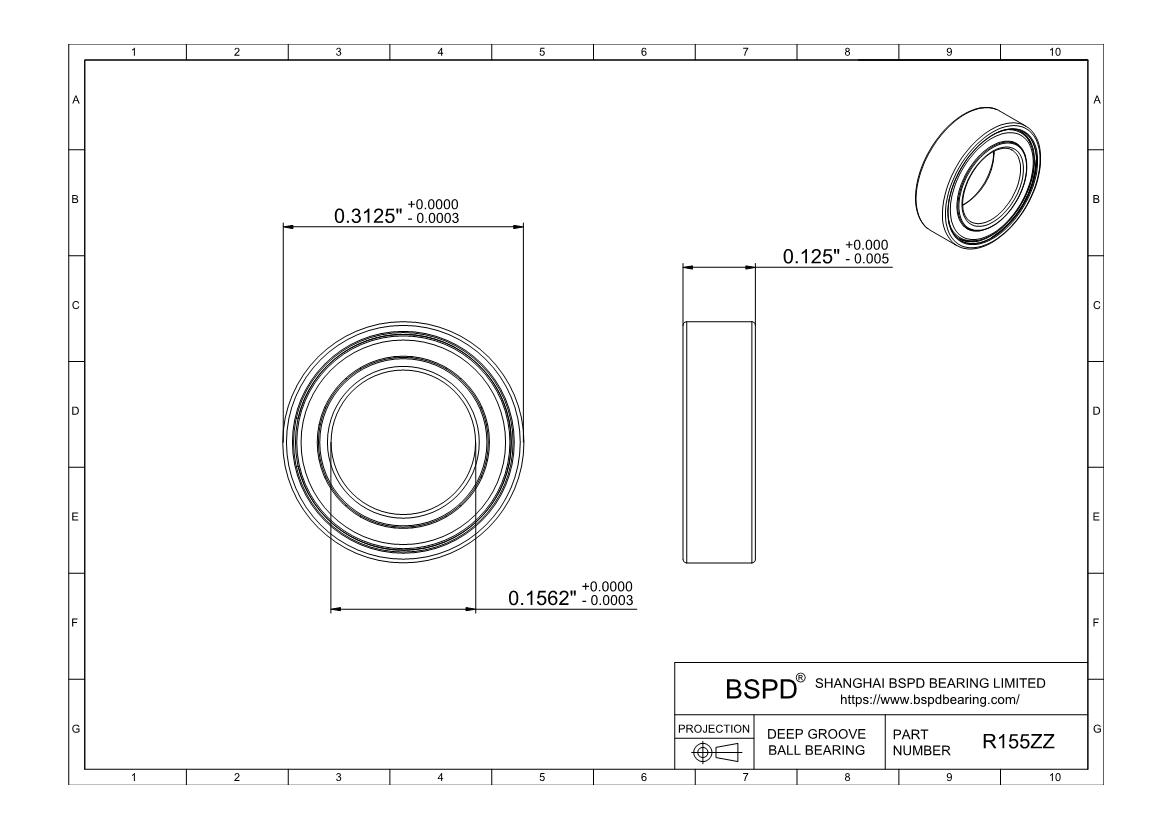

Dimensions: Bore (Inner) Diameter: 0.1563"； Outer Diameter: 0.3125"； Width (Thickness): 0.125";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Shielded |
| Part Number | S316-R155zz |
| For Shaft Diameter | 5/32" |
| Bore Dia (d) | 5/32" | 3.969 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| For Housing ID | 5/16" |
| Outer Dia (D) | 5/16" | 7.938 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Width (B) | 0.1250" | 3.175 mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 316 Stainless Steel |
| Ball Material | 316 Stainless Steel |
| Cage Material | 316 Stainless Steel |
| Seals Material | 316 Stainless Steel |
| Dynamic radial (Newtons) | 122.796 |
| Static radial (Newtons) | 48.052 |
| Max Speed (X1000 RPM) | 31.5 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.003mm to 0.018mm |
| RoHS | Compliant |
| Weight (g) | 0.305 |
