S316-1615 ZZ
AISI316L Stainless Steel Ball Bearings

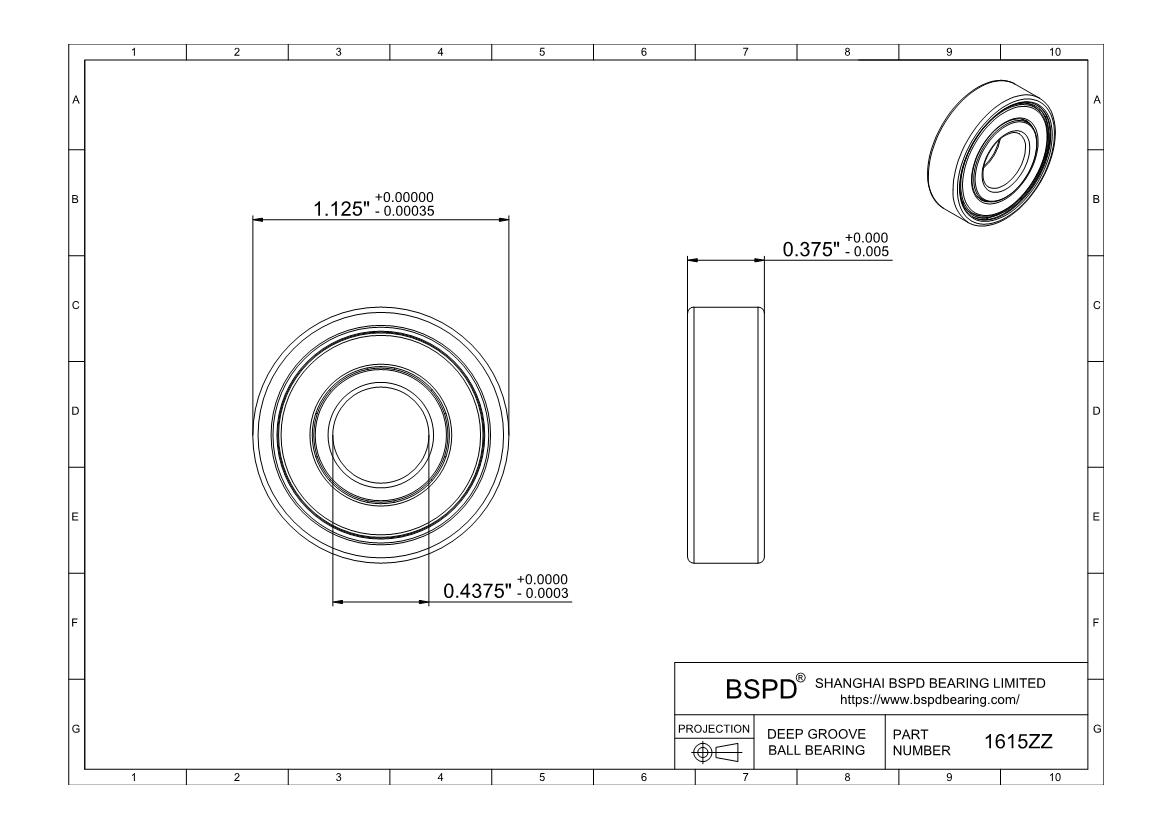

Dimensions: Bore (Inner) Diameter: 0.4375"； Outer Diameter: 1.125"； Width (Thickness): 0.375";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Shielded |
| Part Number | S316-1615 ZZ |
| For Shaft Diameter | 0.4375" |
| Bore Dia (d) | 0.4375" | 11.113 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| For Housing ID | 1.1250" |
| Outer Dia (D) | 1.1250" | 28.575 mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width (B) | 0.3750" | 9.525 mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 316 Stainless Steel |
| Ball Material | 316 Stainless Steel |
| Cage Material | 316 Stainless Steel |
| Seals Material | 316 Stainless Steel |
| Dynamic radial (Newtons) | 458 |
| Static radial (Newtons) | 212 |
| Max Speed (X1000 RPM) | 3 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.003mm to 0.018mm |
| RoHS | Compliant |
| Weight (g) | 16.1 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Stainless Steel Ball Bearings S316-1615 ZZ ? AISI316L Stainless Steel Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
