S304-R166
AISI304 Stainless Steel Ball Bearings

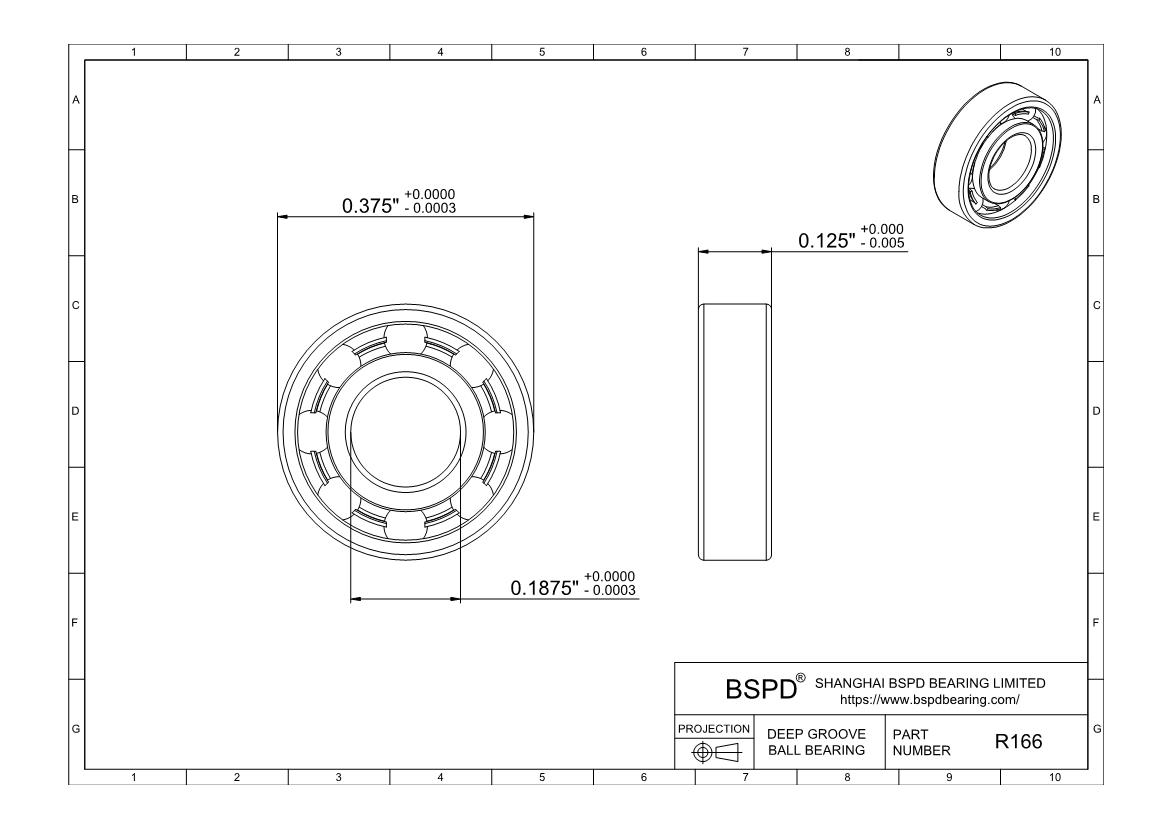

Dimensions: Bore (Inner) Diameter: 0.1875"； Outer Diameter: 0.375"； Width (Thickness): 0.125";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Part Number | S304-R166 |
| For Shaft Diameter | 3/16" |
| Bore Dia (d) | 3/16" | 4.763 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| For Housing ID | 3/8" |
| Outer Dia (D) | 3/8" | 9.525 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Width (B) | 0.1250" | 3.175 mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 304 Stainless Steel |
| Ball Material | 304 Stainless Steel |
| Cage Material | 304 Stainless Steel |
| Seals Material | / |
| Dynamic radial (Newtons) | 181.527 |
| Static radial (Newtons) | 65.403 |
| Max Speed (X1000 RPM) | 21 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.003mm to 0.018mm |
| RoHS | Compliant |
| Weight (g) | 0.324 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
