S304-6200
AISI304 Stainless Steel Ball Bearings

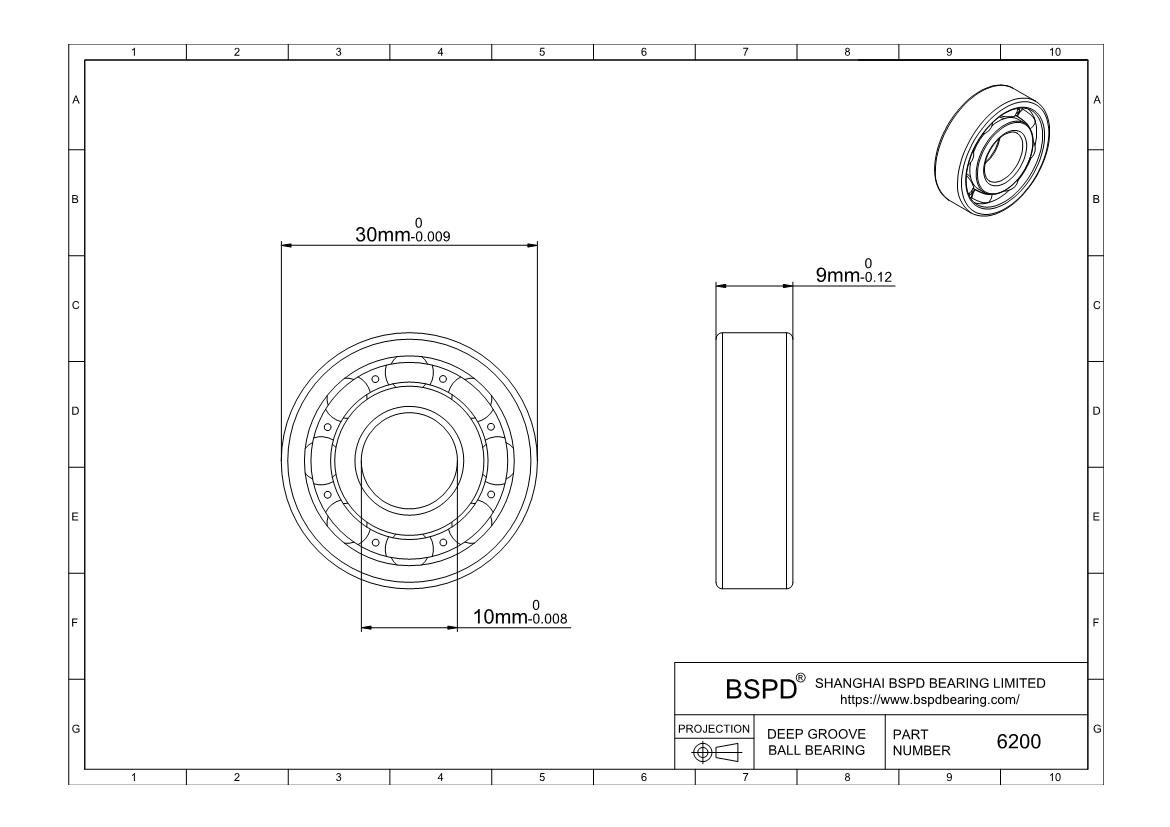

Dimensions: Bore (Inner) Diameter: 10 mm； Outer Diameter: 30 mm； Width (Thickness): 9 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Part Number | S304-6200 |
| For Shaft Diameter | 10 mm |
| Bore Dia (d) | 10 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| For Housing ID | 30mm |
| Outer Dia (D) | 30mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width (B) | 9mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 304 Stainless Steel |
| Ball Material | 304 Stainless Steel |
| Cage Material | 304 Stainless Steel |
| Seals Material | / |
| Dynamic radial (Newtons) | 1530 |
| Static radial (Newtons) | 720 |
| Max Speed (X1000 RPM) | 10.15 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.003mm to 0.018mm |
| RoHS | Compliant |
| Weight (g) | 12.8 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
