RU297UU Crossed Roller TYPE

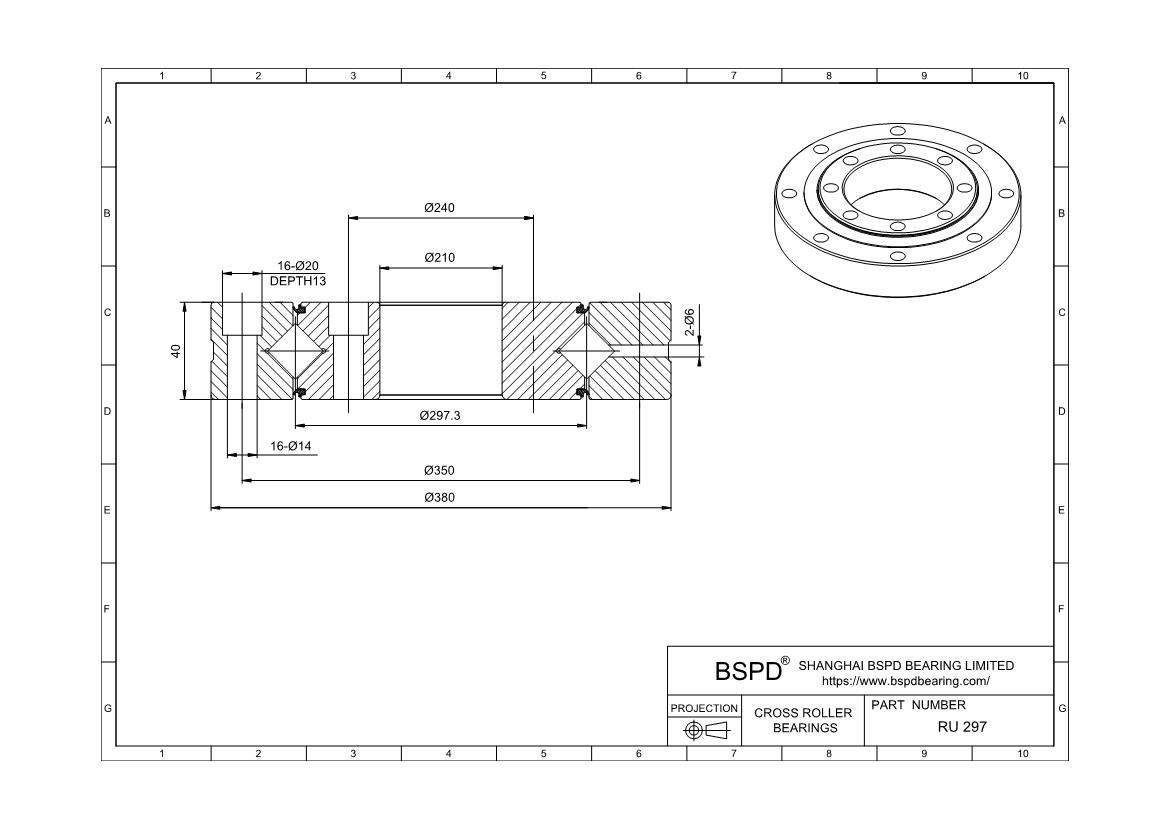

Dimensions: Bore (Inner) Diameter: 210 mm； Outer Diameter: 380 mm； Width (Thickness): 40 mm;

RU297UU
REQUEST FOR QUOTE
* *
Send
Product Attributes
THK Part Number RU297UU
IKO Part Number
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined Radial; Thrust; and Moment
Construction Single Row
Seal Type Sealed
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Ring Material Steel
Roller Material Steel
Shaft dia. mm 210
Mass(kg) 21.3
Bore Dia (d) 210
Outer Dia (D) 380
Width (B) 40
Greasing hole(d1) 6
r(min) 2.5
Shoulder height ds(max) 272
Shoulder height Dh(min) 320
Basic load rating (radial)C kN 156
Basic load rating (radial)Co kN 281
Inner ring PCD1
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230
Inner ring Mounting hole
Outer ring PCD2
Outer ring Mounting hole
RU297UU
