RSTO8-TV Cam Followers, Yoke Type & Stud Type Track Rollers

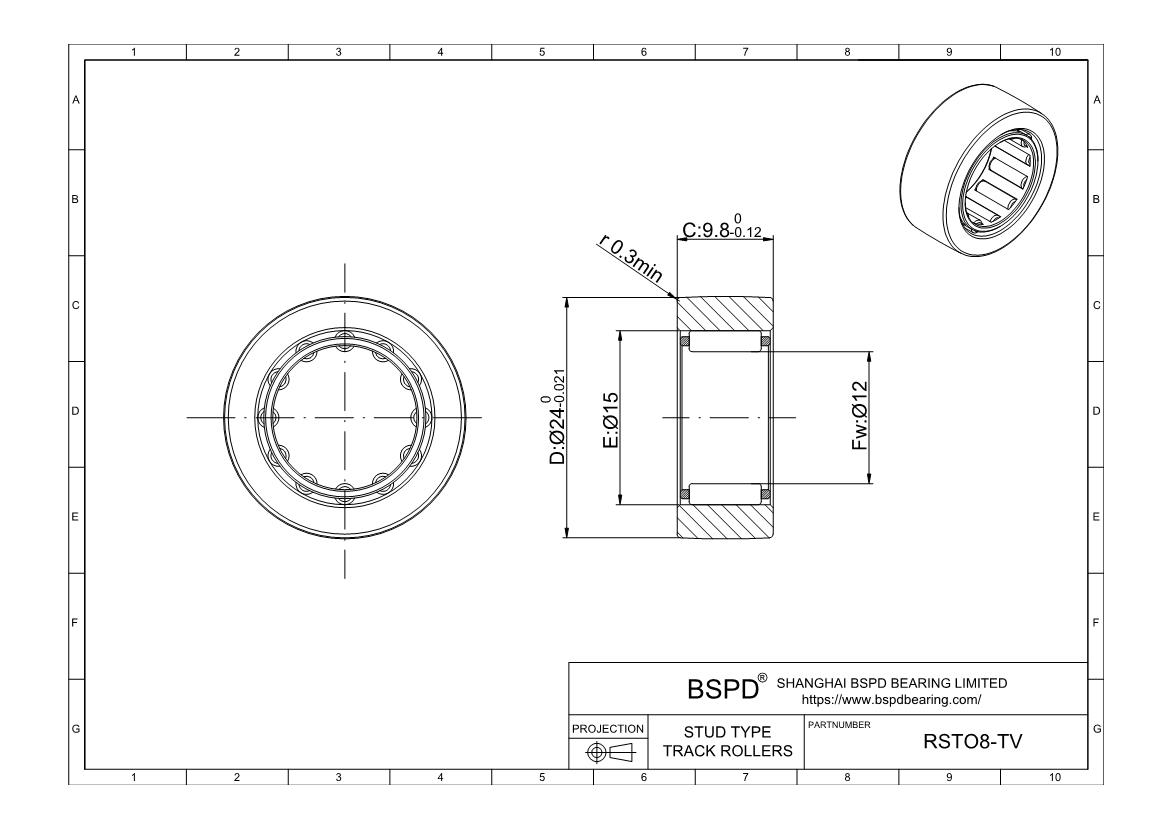

Dimensions: Roller Dia: 24 mm; Roller Width: 9.8 mm; Stud Dia: ; Stud Length: ;

RSTO8-TV
REQUEST FOR QUOTE
* *
Send
Product Attributes
Guide Roller Type Track
Track Roller Type Round
For Load Direction Radial
Roller Profile Flat
Roller Style Yoke
Roller Material Steel
Fw 12 mm
D 24 mm
C 9.8 mm
E 15 mm
R 500 mm
rmin 0.3 mm
Cr w 4200 N
Cur w 780 N
Maximum Speed 8000 1/min
Temperature Range -20 to 110 °C
Shaft Mount Type Press Fit
Bearing Type Needle Roller
With Seal No
Lubrication Required
RoHS Compliant
Weight (g) 21
RSTO8-TV
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
