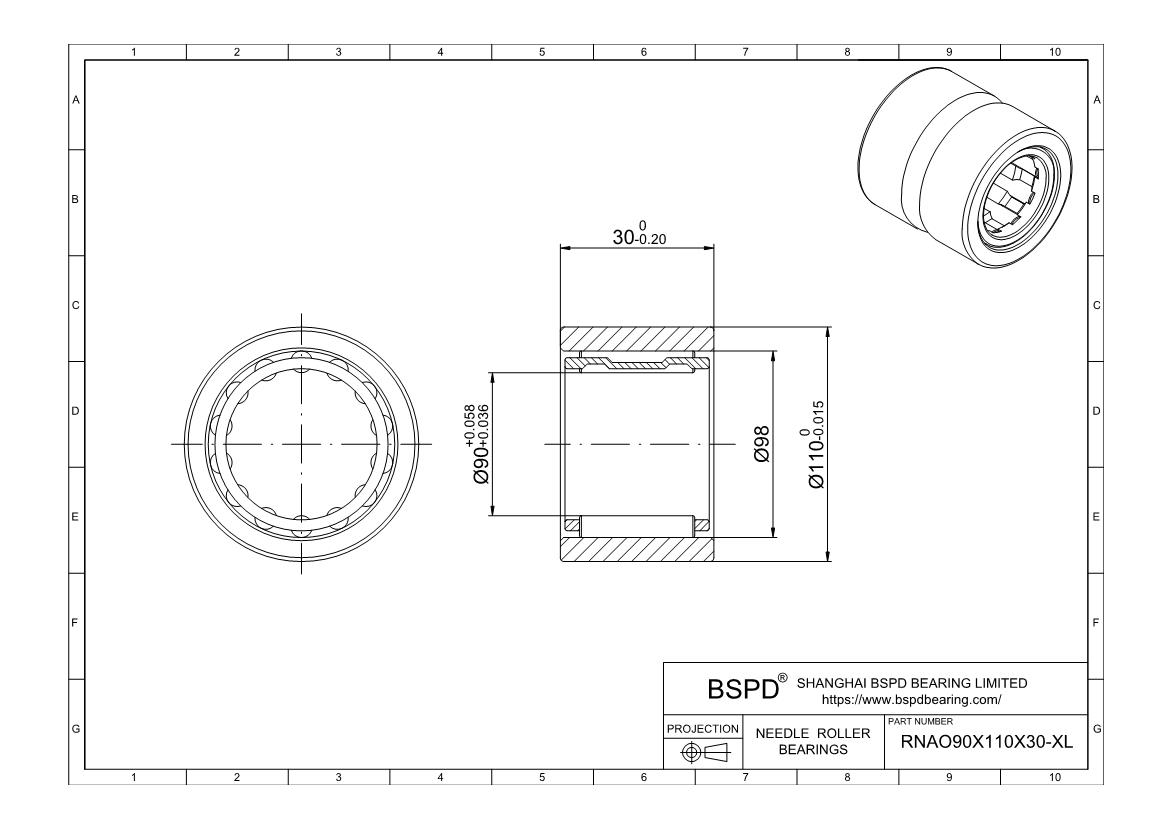

RNAO90X110X30-XL
Heavy Duty Needle Roller Bearings (Machined)
Dimensions: Bore (Inner) Diameter: 90 mm； Outer Diameter: 110 mm； Width (Thickness): 30 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| System of Measurement | Metric |
| Seal Type | Open |
| Part Number | RNAO90X110X30-XL |
| For Shaft Diameter | 90 mm |
| Bore Dia | 90 mm |
| Bore Dia Tolerance | 0.036mm to 0.058mm |
| For Housing ID | 110 mm |
| Outer Dia | 110 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width | 30 mm |
| Width Tolerance | -0.2mm to 0 |
| E | 98 mm |
| Chamfer Dimension (r min) | 1 mm |
| Ring Material | steel |
| Roller Material | steel |
| Cage Material | Steel |
| Dynamic Load Rating (Cr) (Newtons) | 76000 |
| Static Load Rating (Cor) (Newtons) | 172000 |
| Fatigue limit load(Cur) (Newtons) | 30000 |
| Max Speed (Grease) (RPM) | 5200 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 610 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings RNAO90X110X30-XL ? Heavy Duty Needle Roller Bearings (Machined) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
