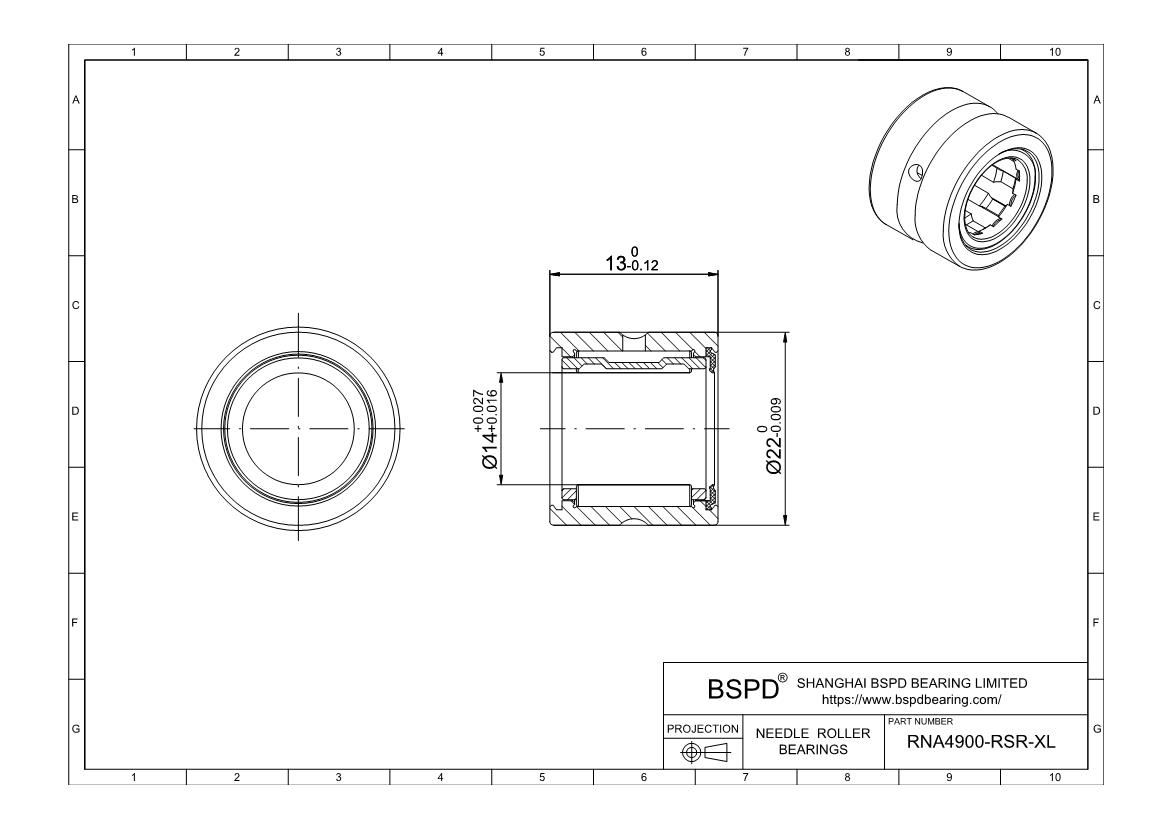

RNA4900-RSR-XL
Heavy Duty Needle Roller Bearings (Machined)
Dimensions: Bore (Inner) Diameter: 14 mm； Outer Diameter: 22 mm； Width (Thickness): 13 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| System of Measurement | Metric |
| Seal Type | Single Seal |
| Part Number | RNA4900-RSR-XL |
| For Shaft Diameter | 14mm |
| Bore Dia | 14mm |
| Bore Dia Tolerance | 0.016mm to 0.027mm |
| For Housing ID | 22mm |
| Outer Dia | 22mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width | 13mm |
| Width Tolerance | -0.12mm to 0 |
| Chamfer Dimension (r min) | 0.3mm |
| Ring Material | steel |
| Roller Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 7700 |
| Static Load Rating (Cor) (Newtons) | 6900 |
| Fatigue limit load(Cur) (Newtons) | 1390 |
| Max Speed (Grease) (RPM) | 14800 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 16 |
Print PDF
Request a 3D CAD Model
