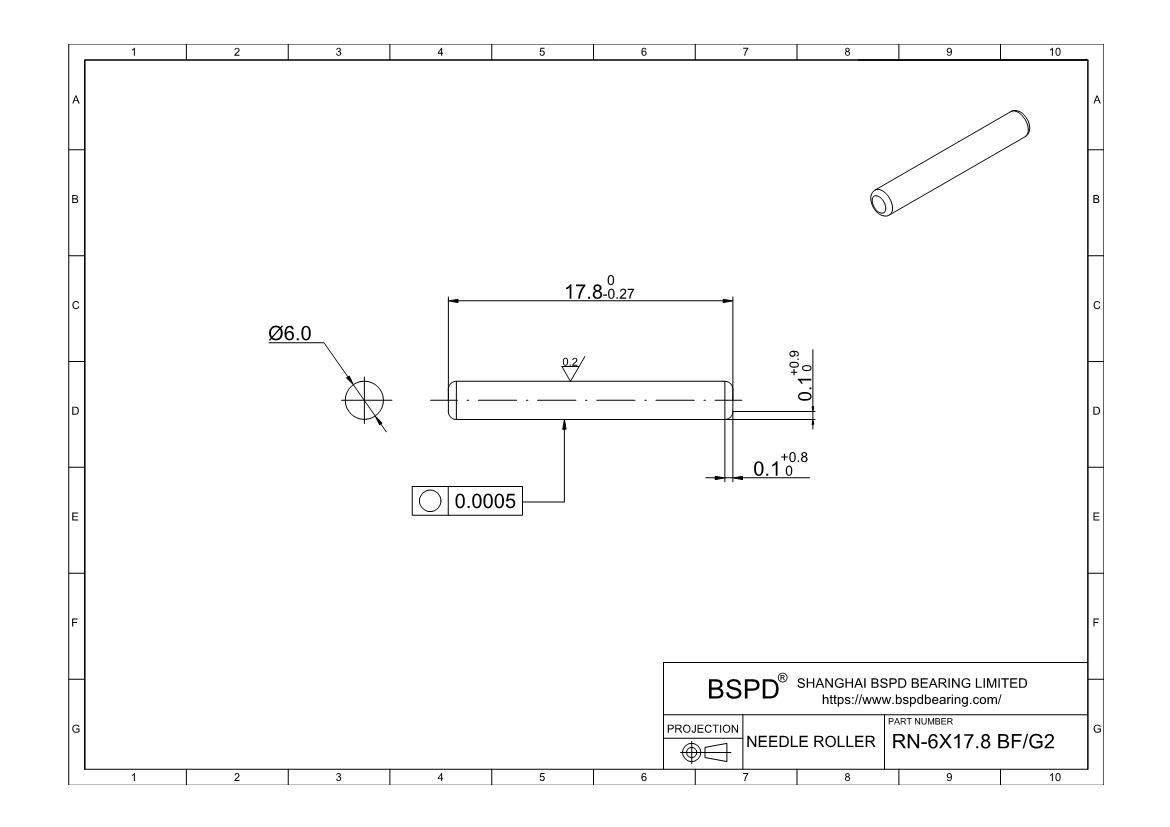

RN-6X17.8 BF/G2
Loose Needle Rollers
Dimensions: Bore (Inner) Diameter: 6 mm； Outer Diameter: ； Width (Thickness): 17.8 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Ends Type | Flat |
| Part Number | RN-6×17.8 BF/G2 |
| Rating | G2 |
| Dw | 6 mm |
| VDWL | 2um |
| Lw | 17.8 mm |
| Length Tolerance | 0 to -0.27mm |
| rsmin | 0.1 mm |
| rsmax radial | 0.9 mm |
| rsmax axial | 1 mm |
| Roughness | 0.2um |
| Roundness | 0.5um |
| Material | 52100 Chrome steel |
| Hardness | HRC60-65 |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
