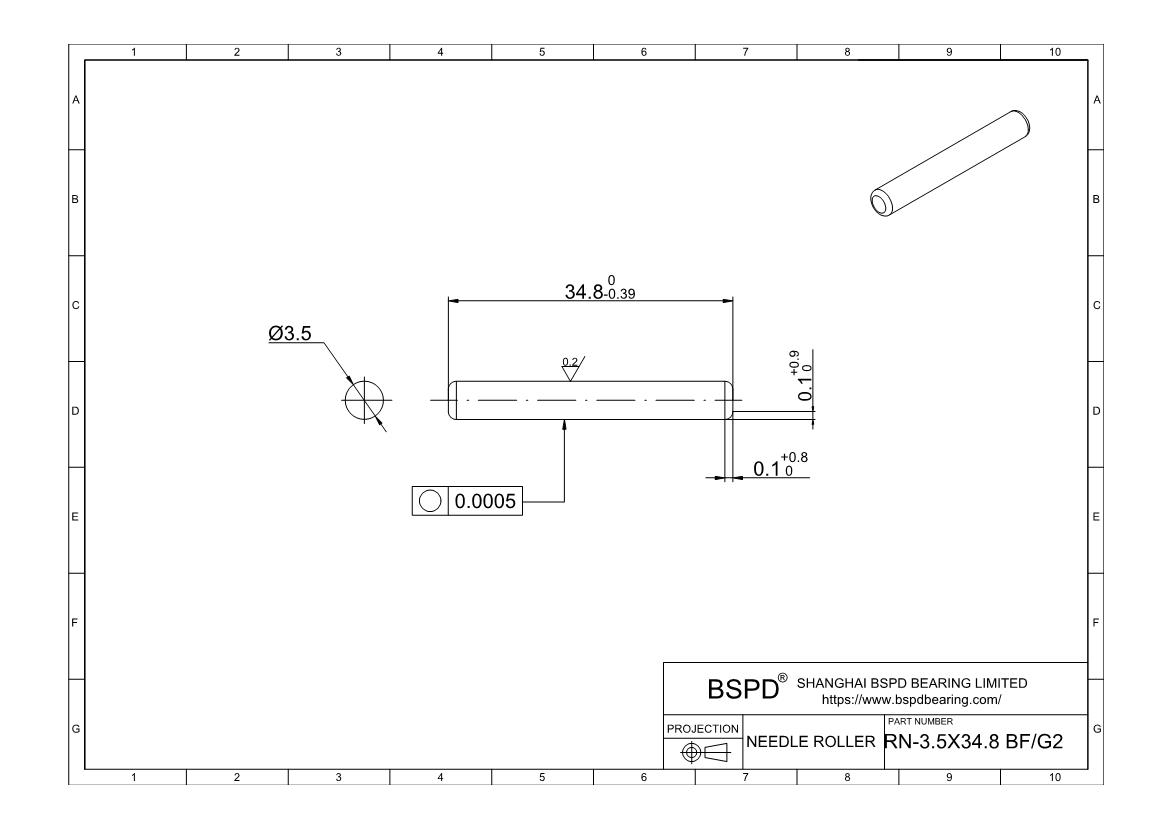

RN-3.5X34.8 BF/G2
Loose Needle Rollers
Dimensions: Bore (Inner) Diameter: 3.5 mm； Outer Diameter: ； Width (Thickness): 34.8 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Ends Type | Flat |
| Part Number | RN-3.5×34.8 BF/G2 |
| Rating | G2 |
| Dw | 3.5 mm |
| VDWL | 2um |
| Lw | 34.8 mm |
| Length Tolerance | 0 to -0.39mm |
| rsmin | 0.1 mm |
| rsmax radial | 0.9 mm |
| rsmax axial | 1 mm |
| Roughness | 0.2um |
| Roundness | 0.5um |
| Material | 52100 Chrome steel |
| Hardness | HRC60-65 |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings RN-3.5X34.8 BF/G2 ? Loose Needle Rollers Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
