RLS20
Deep Groove Ball Bearings

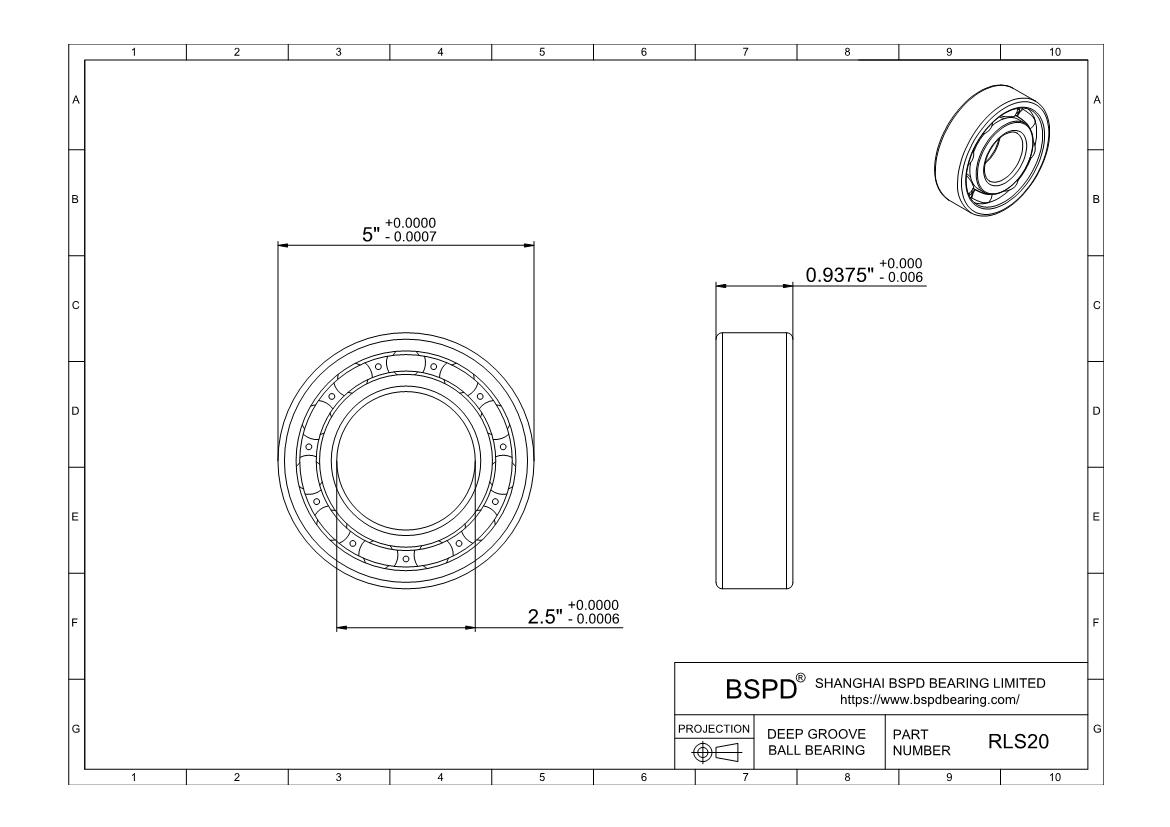

Dimensions: Bore (Inner) Diameter: 2.5"； Outer Diameter: 5"； Width (Thickness): 0.9375";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Part Number | RLS20 |
| For Shaft Diameter | 2.5" |
| Bore Dia (d) | 2.5" | 63.5 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| For Housing ID | 5" |
| Outer Dia (D) | 5" | 127 mm |
| Outer Dia Tolerance | -0.018mm to 0 |
| Width (B) | 0.9375" | 23.813 mm |
| Width Tolerance | -0.150mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Load Rating (Cr) (Newtons) | 60500 |
| Static Load Rating (Cor) (Newtons) | 45000 |
| Max Speed (Grease) (X1000 RPM) | 7 |
| Max Speed (Oil) (X1000 RPM) | 8 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.008mm to 0.028mm |
| RoHS | Compliant |
| Ball Qty | |
| Ball Dia | |
| Weight (grams) | 1290 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of ball bearings RLS20 ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
