RK6-43P1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 38.75"; Outer Diameter: 47.17"; Width (Thickness): ;
![RK6-43P1Z](https://www.bspdbearing.com/wp-content/uploads/2021/05/RK.jpg)
Product Attributes
Specifications | |
Part Number | RK6-43P1Z |
Maximum Allowable Gear Tooth Load (Fz) | - |
Moment Load Rating (Crm) | 75500ft-lbs | 337.054KN |
Bearing Types | Slewing Ring Bearing |
Outline Dimensions and Weight | |
Outside Diameter of Outer Ring (Do) | 47.17 " | 1198.12mm |
Outside Diameter of Outer Ring (Do) Tolerance | ±.040 " | ±1.02mm |
Inside Diameter of Inner Ring (di) | 38.75" | 984.25mm |
Inside Diameter of Inner Ring (di) Tolerance | ±.040 " | ±1.02mm |
External Diameter on Outer Ring (Dr) | 44.65 " | 1134.11mm |
External Diameter on Outer Ring (Dr) Tolerance | -0.08 " | -2.03mm |
Internal Diameter on Outer Ring (Di) | 43 " | 1092.2mm |
External Diameter on Inner Ring (do) | 42.92 " | 1090.17mm |
Internal Diameter on Inner Ring (dr) | 41.27 " | 1048.26mm |
Internal Diameter on Inner Ring (dr) Tolerance | +0.08 " | +2.03mm |
Approximate Weight (lb) | 153 lbs | 69.399KG |
Mounting Holes | |
Bolt Circle in Outer Ring (Lo) | 46 " | 1168.4mm |
Number Holes in Outer Ring (no) | 18 |
Bolt Circle in Inner Ring (Li) | 39.88 " | 1012.95mm |
Number Holes in Inner Ring (ni) | 24 |
Gear Data | |
Pitch Diameter of Gear (D2) | - |
Diametral Pitch (Pd) | - |
Number of Gear Teeth (z2) | - |
Pressure Angle of Gear Teeth (α) | - |
Mating Pinions | 39200003 39200004 |

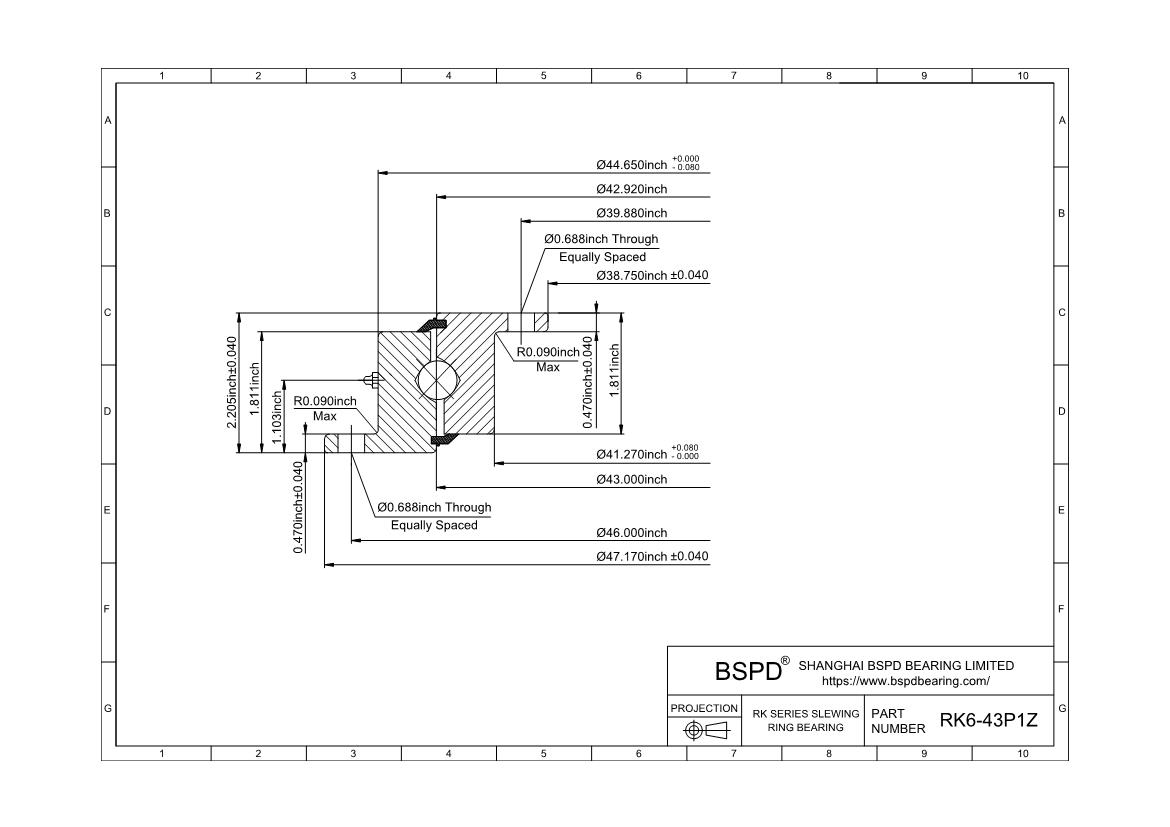

![RK6-43P1Z](/wp-content/uploads/pdf/RK6-43P1Z/1.jpg)
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RK6-43P1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
