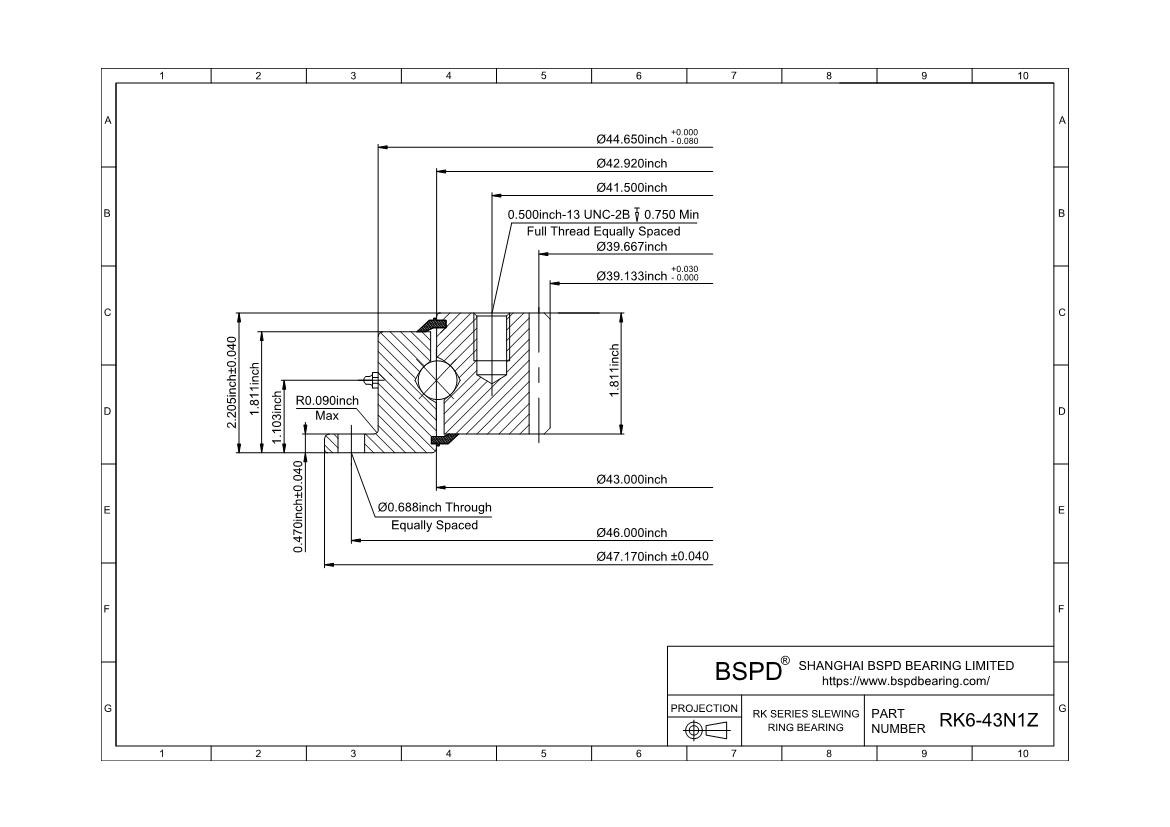

RK6-43N1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 39.133"； Outer Diameter: 47.17"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | RK6-43N1Z |
| Maximum Allowable Gear Tooth Load (Fz) | 8340lbs | 37.232KN |
| Moment Load Rating (Crm) | 75500ft-lbs | 337.054KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 47.17 " | 1198.12mm |
| Outside Diameter of Outer Ring (Do) Tolerance | ±.040 " | ±1.02mm |
| Inside Diameter of Inner Ring (di) | 39.133" | 993.98mm |
| Inside Diameter of Inner Ring (di) Tolerance | +0.03 " | +0.76mm |
| External Diameter on Outer Ring (Dr) | 44.65 " | 1134.11mm |
| External Diameter on Outer Ring (Dr) Tolerance | -0.08 " | -2.03mm |
| Internal Diameter on Outer Ring (Di) | 43 " | 1092.2mm |
| External Diameter on Inner Ring (do) | 42.92 " | 1090.17mm |
| Internal Diameter on Inner Ring (dr) | - |
| Internal Diameter on Inner Ring (dr) Tolerance | - |
| Approximate Weight (lb) | 188 lbs | 85.275KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 46 " | 1168.4mm |
| Number Holes in Outer Ring (no) | 18 |
| Bolt Circle in Inner Ring (Li) | 41.5 " | 1054.1mm |
| Number Holes in Inner Ring (ni) | 24 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 39.677 " | 1007.8mm |
| Diametral Pitch (Pd) | 3 |
| Number of Gear Teeth (z2) | 119 |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Mating Pinions | 39200003 39200004 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RK6-43N1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
