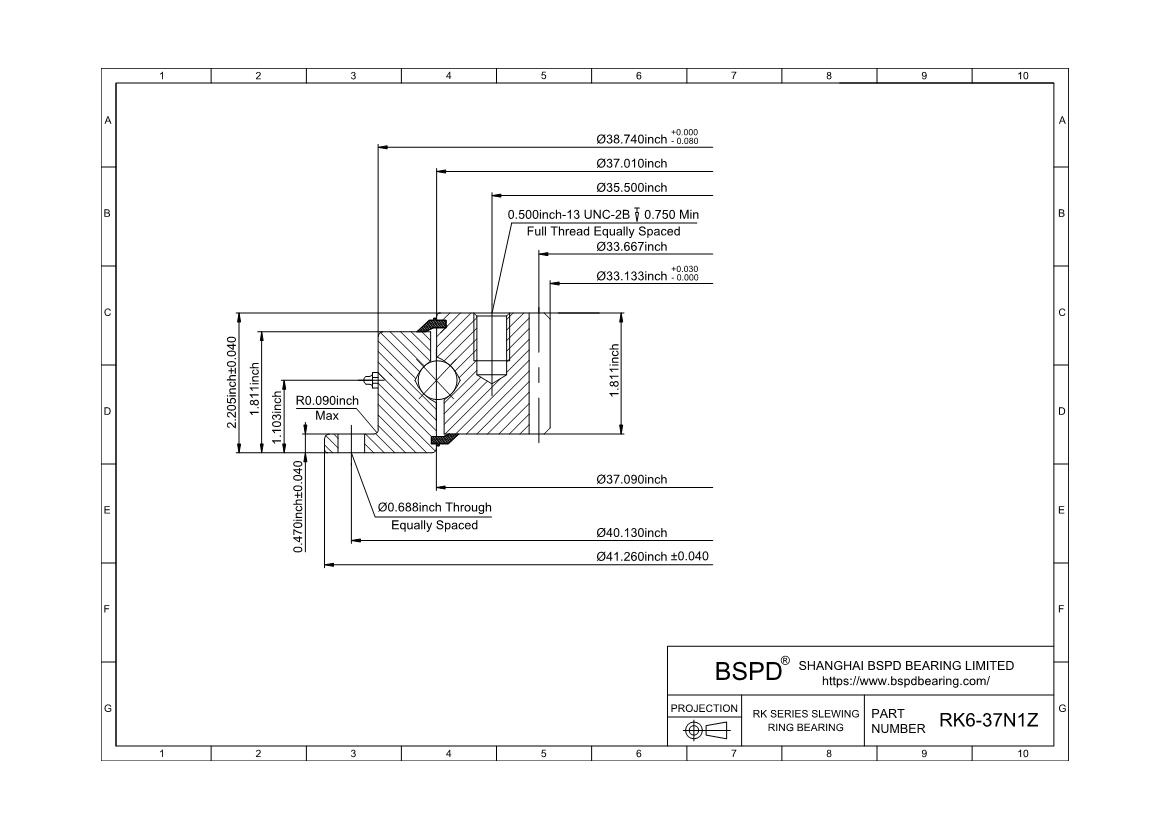

RK6-37N1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 33.133"； Outer Diameter: 41.26"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | RK6-37N1Z |
| Maximum Allowable Gear Tooth Load (Fz) | 8420lbs | 37.589KN |
| Moment Load Rating (Crm) | 65200ft-lbs | 291.071KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 41.26 " | 1048mm |
| Outside Diameter of Outer Ring (Do) Tolerance | ±.040 " | ±1.02mm |
| Inside Diameter of Inner Ring (di) | 33.133 " | 841.58mm |
| Inside Diameter of Inner Ring (di) Tolerance | +0.03 " | +0.76mm |
| External Diameter on Outer Ring (Dr) | 38.74 " | 984mm |
| External Diameter on Outer Ring (Dr) Tolerance | -0.08 " | -2.03mm |
| Internal Diameter on Outer Ring (Di) | 37.09 " | 942.09mm |
| External Diameter on Inner Ring (do) | 37.01 " | 940.05mm |
| Internal Diameter on Inner Ring (dr) | - |
| Internal Diameter on Inner Ring (dr) Tolerance | - |
| Approximate Weight (lb) | 165 lbs | 74.842KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 40.13 " | 1019.3mm |
| Number Holes in Outer Ring (no) | 18 |
| Bolt Circle in Inner Ring (Li) | 35.5 " | 901.7mm |
| Number Holes in Inner Ring (ni) | 20 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 33.667 " | 855.14mm |
| Diametral Pitch (Pd) | 3 |
| Number of Gear Teeth (z2) | 101 |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Mating Pinions | 39200003 39200004 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RK6-37N1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
