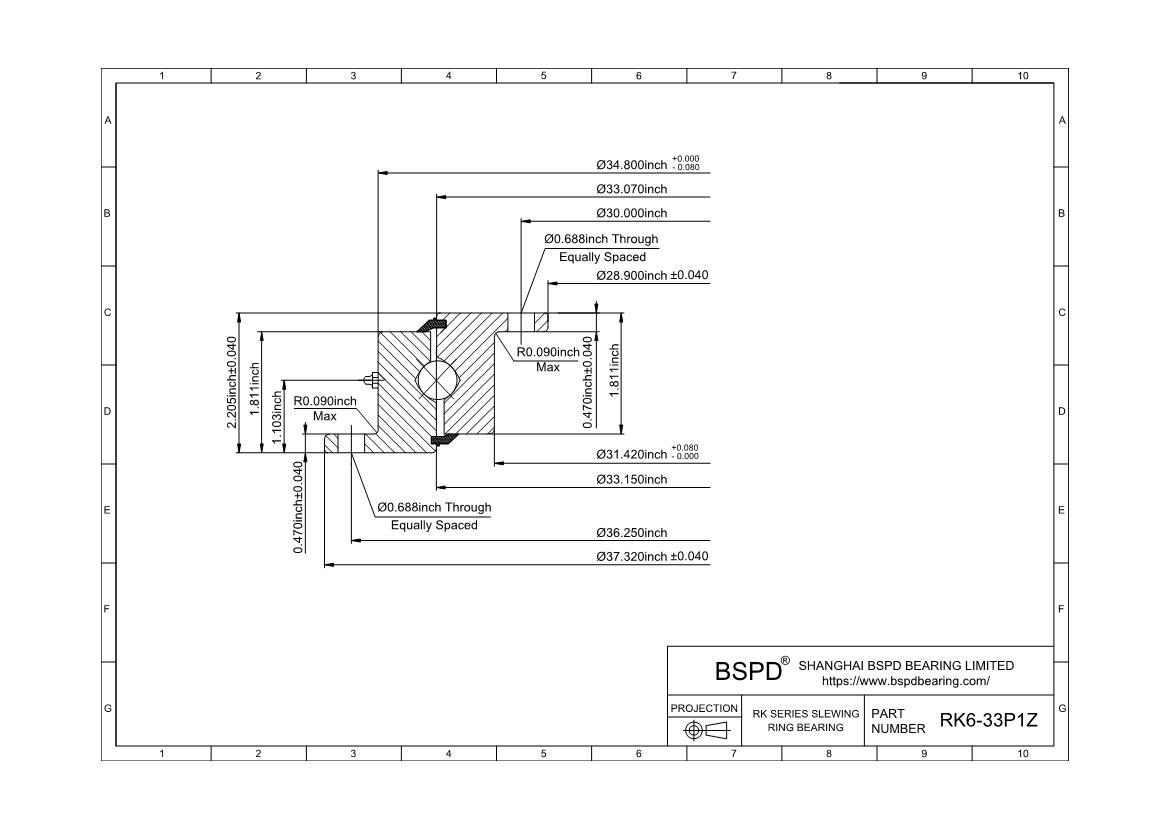

RK6-33P1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 28.9"； Outer Diameter: 37.32"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | RK6-33P1Z |
| Maximum Allowable Gear Tooth Load (Fz) | - |
| Moment Load Rating (Crm) | 56500ft-lbs | 252.232KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 37.32 " | 947.93mm |
| Outside Diameter of Outer Ring (Do) Tolerance | ±.040 " | ±1.02mm |
| Inside Diameter of Inner Ring (di) | 28.9 " | 734.06mm |
| Inside Diameter of Inner Ring (di) Tolerance | ±.040 " | ±1.02mm |
| External Diameter on Outer Ring (Dr) | 34.8 " | 883.92mm |
| External Diameter on Outer Ring (Dr) Tolerance | -0.08 " | -2.03mm |
| Internal Diameter on Outer Ring (Di) | 33.15 " | 842.01mm |
| External Diameter on Inner Ring (do) | 33.07 " | 839.98mm |
| Internal Diameter on Inner Ring (dr) | 31.42 " | 798.07mm |
| Internal Diameter on Inner Ring (dr) Tolerance | +0.08 " | +2.03mm |
| Approximate Weight (lb) | 118 lbs | 53.524KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 36.25 " | 920.75mm |
| Number Holes in Outer Ring (no) | 18 |
| Bolt Circle in Inner Ring (Li) | 30 " | 762mm |
| Number Holes in Inner Ring (ni) | 18 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | - |
| Diametral Pitch (Pd) | - |
| Number of Gear Teeth (z2) | - |
| Pressure Angle of Gear Teeth (α) | - |
| Mating Pinions | 39200003 39200004 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RK6-33P1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
