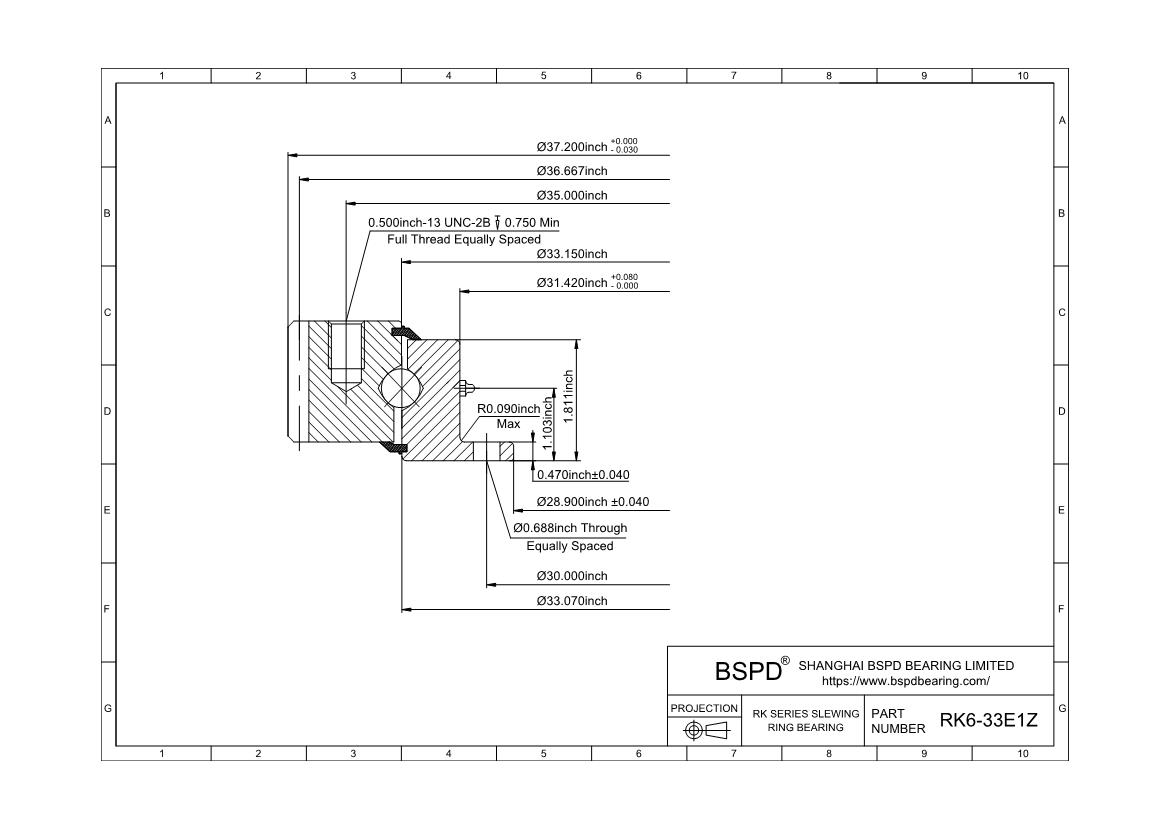

RK6-33E1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 24.97"； Outer Diameter: 32.9"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | RK6-33E1Z |
| Maximum Allowable Gear Tooth Load (Fz) | 5740lbs | 25.625KN |
| Moment Load Rating (Crm) | 56500ft-lbs | 252.232KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 32.9 " | 835.66mm |
| Outside Diameter of Outer Ring (Do) Tolerance | -0.03 " | -0.76mm |
| Inside Diameter of Inner Ring (di) | 24.97 " | 634.24mm |
| Inside Diameter of Inner Ring (di) Tolerance | ±.040 " | ±1.02mm |
| External Diameter on Outer Ring (Dr) | - |
| External Diameter on Outer Ring (Dr) Tolerance | - |
| Internal Diameter on Outer Ring (Di) | 29.22 " | 742.19mm |
| External Diameter on Inner Ring (do) | 29.14 " | 740.16mm |
| Internal Diameter on Inner Ring (dr) | 27.49 " | 698.25mm |
| Internal Diameter on Inner Ring (dr) Tolerance | +0.08 " | +2.03mm |
| Approximate Weight (lb) | 128 lbs | 58.06KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 31 " | 787.4mm |
| Number Holes in Outer Ring (no) | 18 |
| Bolt Circle in Inner Ring (Li) | 26.13 " | 663.7mm |
| Number Holes in Inner Ring (ni) | 18 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 32.5 inch" | 825.5mm |
| Diametral Pitch (Pd) | 4 |
| Number of Gear Teeth (z2) | 130 |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Mating Pinions | 39200003 39200004 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RK6-33E1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
