RK6-29P1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 24.97"; Outer Diameter: 33.39"; Width (Thickness): ;
![RK6-29P1Z](https://www.bspdbearing.com/wp-content/uploads/2021/05/RK.jpg)
Product Attributes
Specifications | |
Part Number | RK6-29P1Z |
Maximum Allowable Gear Tooth Load (Fz) | - |
Moment Load Rating (Crm) | 54200ft-lbs | 241.964KN |
Bearing Types | Slewing Ring Bearing |
Outline Dimensions and Weight | |
Outside Diameter of Outer Ring (Do) | 33.39 " | 848.11mm |
Outside Diameter of Outer Ring (Do) Tolerance | ±.040 " | ±1.02mm |
Inside Diameter of Inner Ring (di) | 24.97 " | 634.24mm |
Inside Diameter of Inner Ring (di) Tolerance | ±.040 " | ±1.02mm |
External Diameter on Outer Ring (Dr) | 30.87 " | 784.1mm |
External Diameter on Outer Ring (Dr) Tolerance | -0.08 " | -2.03mm |
Internal Diameter on Outer Ring (Di) | 29.22 " | 742.19mm |
External Diameter on Inner Ring (do) | 29.14 " | 740.16mm |
Internal Diameter on Inner Ring (dr) | 27.49 " | 698.25mm |
Internal Diameter on Inner Ring (dr) Tolerance | +0.08 " | +2.03mm |
Approximate Weight (lb) | 104 lbs | 47.173KG |
Mounting Holes | |
Bolt Circle in Outer Ring (Lo) | 32.25 " | 819.15mm |
Number Holes in Outer Ring (no) | 15 |
Bolt Circle in Inner Ring (Li) | 26.13 " | 663.7mm |
Number Holes in Inner Ring (ni) | 18 |
Gear Data | |
Pitch Diameter of Gear (D2) | - |
Diametral Pitch (Pd) | - |
Number of Gear Teeth (z2) | - |
Pressure Angle of Gear Teeth (α) | - |
Mating Pinions | 39200001 39200002 |

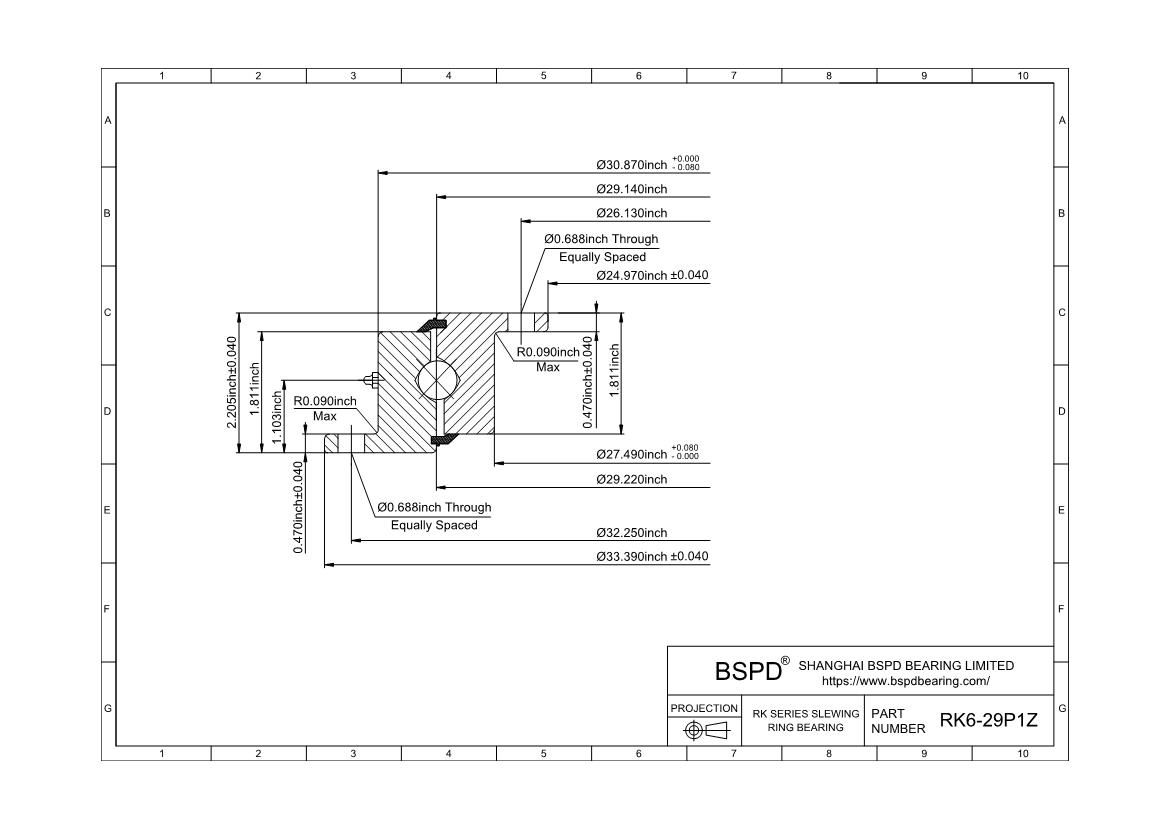

![RK6-29P1Z](/wp-content/uploads/pdf/RK6-29P1Z/1.jpg)
Print PDF
Request a 3D CAD Model
