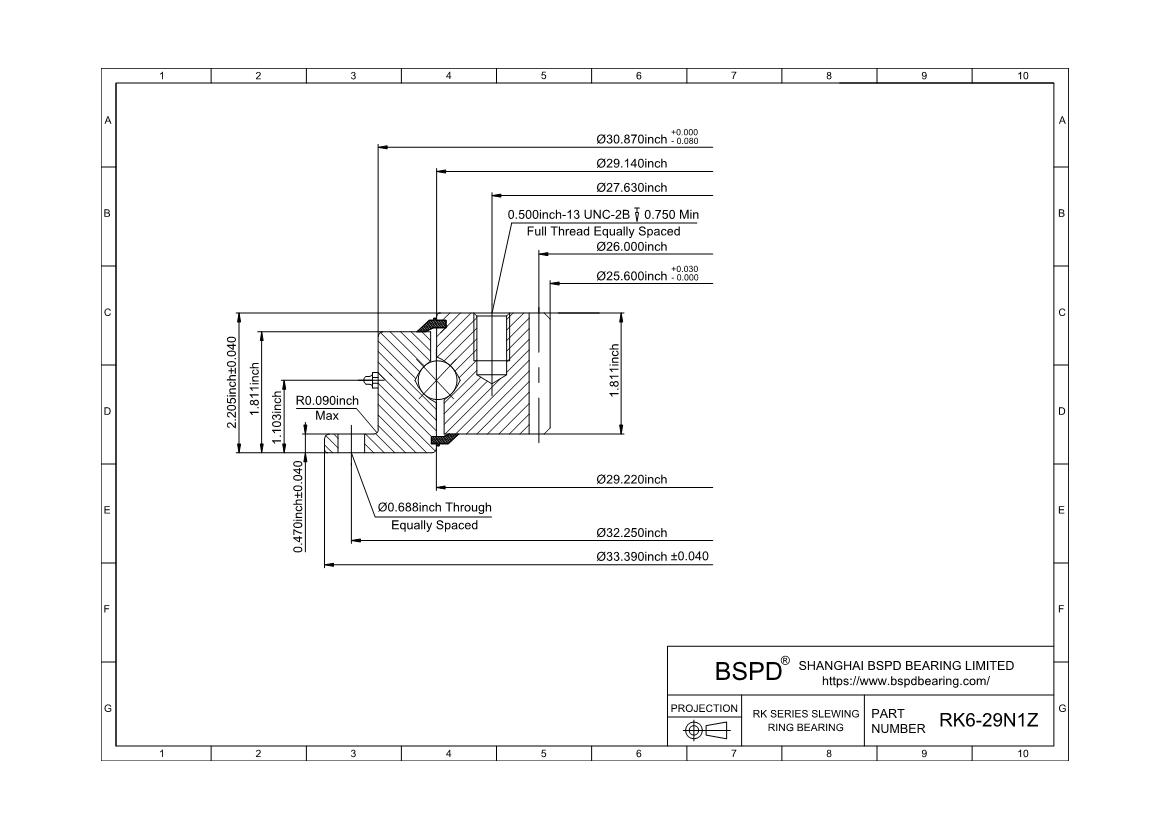

RK6-29N1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 25.6"； Outer Diameter: 33.39"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | RK6-29N1Z |
| Maximum Allowable Gear Tooth Load (Fz) | 6300lbs | 28.125KN |
| Moment Load Rating (Crm) | 54200ft-lbs | 241.964KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 33.39 " | 848.11mm |
| Outside Diameter of Outer Ring (Do) Tolerance | ±.040 " | ±1.02mm |
| Inside Diameter of Inner Ring (di) | 25.6" | 650.24mm |
| Inside Diameter of Inner Ring (di) Tolerance | +0.03 " | +0.76mm |
| External Diameter on Outer Ring (Dr) | 30.87 " | 784.1mm |
| External Diameter on Outer Ring (Dr) Tolerance | -0.08 " | -2.03mm |
| Internal Diameter on Outer Ring (Di) | 29.22 " | 742.19mm |
| External Diameter on Inner Ring (do) | 29.14 " | 740.16mm |
| Internal Diameter on Inner Ring (dr) | - |
| Internal Diameter on Inner Ring (dr) Tolerance | - |
| Approximate Weight (lb) | 121 lbs | 54.884KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 32.25 " | 819.15mm |
| Number Holes in Outer Ring (no) | 15 |
| Bolt Circle in Inner Ring (Li) | 27.63 " | 701.8mm |
| Number Holes in Inner Ring (ni) | 18 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 26 " | 660.4mm |
| Diametral Pitch (Pd) | 4 |
| Number of Gear Teeth (z2) | 104 |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Mating Pinions | 39200001 39200002 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
