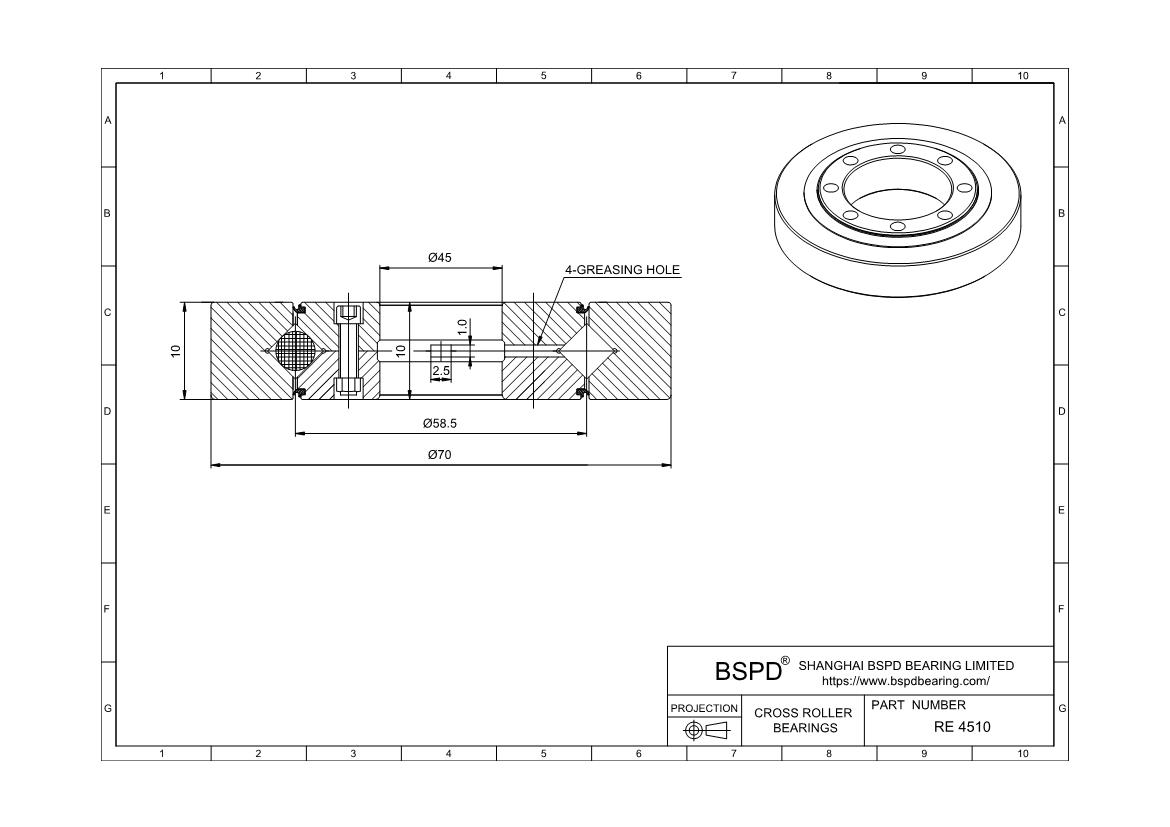

RE4510UU Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 45 mm； Outer Diameter: 70 mm； Width (Thickness): 10 mm;

REQUEST FOR QUOTE

Product Attributes

Part Number	RE4510UU
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Sealed
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	45
Mass(kg)	0.17
Bore Dia (d)	45
Outer Dia (D)	70
Width (B)	10
Greasing hole(a)	2.5
Greasing hole(b)	1
r(min)	0.6
Shoulder height ds(max)	52.5
Shoulder height Dh(min)	63.5
Basic load rating (radial)C kN	8.62
Basic load rating (radial)Co kN	11.3

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of Crossed Roller Bearings RE4510UU ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
