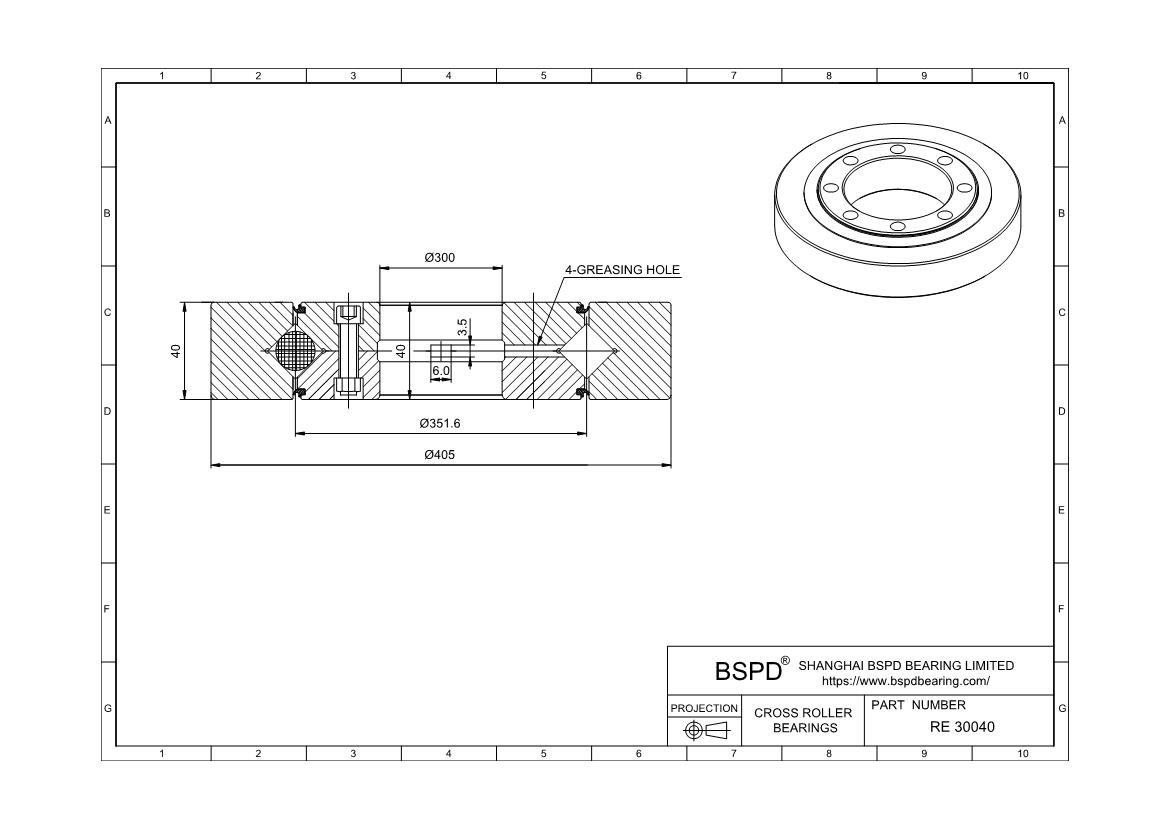

RE30040UU
Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 300 mm； Outer Diameter: 405 mm； Width (Thickness): 40 mm;
REQUEST FOR QUOTE
Product Attributes
| Part Number | RE30040UU |
| Bearing Type | Crossed Roller |
| Construction | Single Row |
| Seal Type | Sealed |
| ABEC Rating | ABEC-5 ABEC-7 ABEC-9 |
| Shaft dia. mm | 300 |
| Mass(kg) | 17.2 |
| Bore Dia (d) | 300 |
| Outer Dia (D) | 405 |
| Width (B) | 40 |
| Greasing hole(a) | 6 |
| Greasing hole(b) | 3.5 |
| r(min) | 2.5 |
| Shoulder height ds(max) | 326 |
| Shoulder height Dh(min) | 377 |
| Basic load rating (radial)C kN | 212 |
| Basic load rating (radial)Co kN | 409 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings RE30040UU ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
