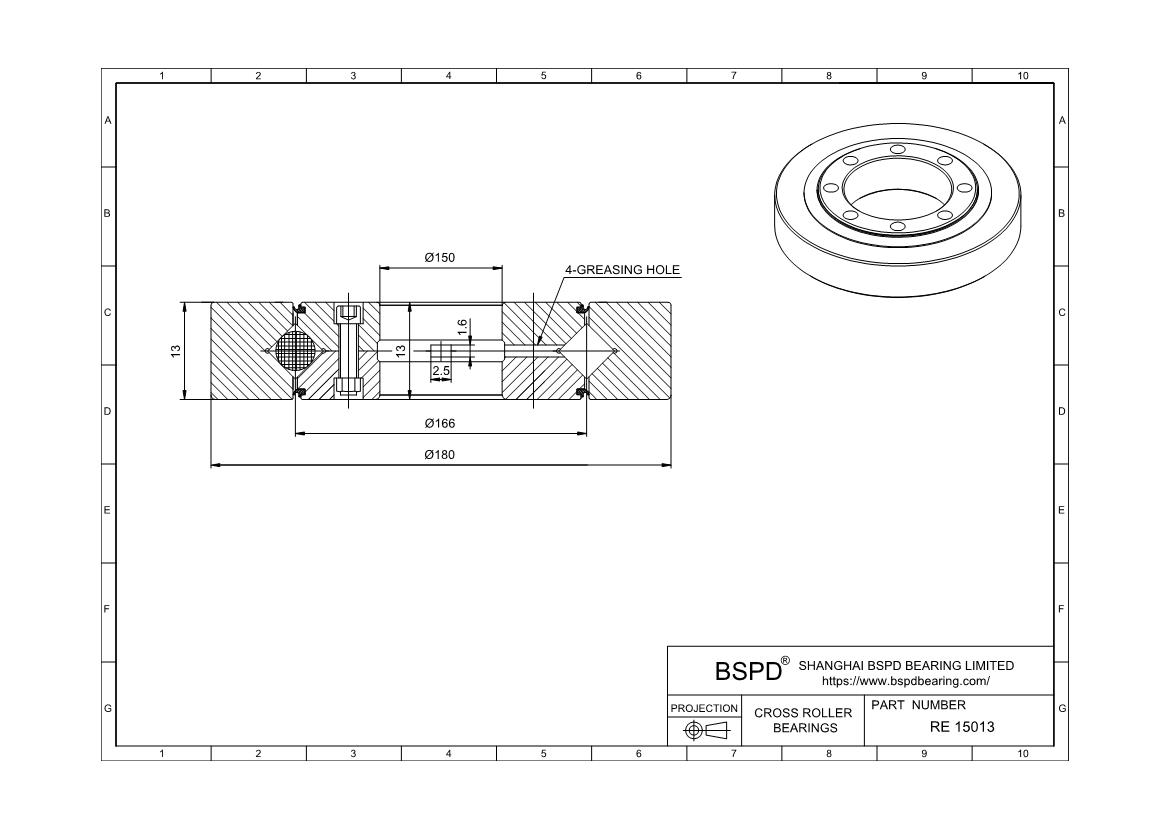

RE15013 Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 150 mm； Outer Diameter: 180 mm； Width (Thickness): 13 mm;

REQUEST FOR QUOTE

Product Attributes

Part Number	RE15013
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Open
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	150
Mass(kg)	0.68
Bore Dia (d)	150
Outer Dia (D)	180
Width (B)	13
Greasing hole(a)	2.5
Greasing hole(b)	1.6
r(min)	0.6
Shoulder height ds(max)	158
Shoulder height Dh(min)	173
Basic load rating (radial)C kN	27
Basic load rating (radial)Co kN	53.5

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of Crossed Roller Bearings RE15013 ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
