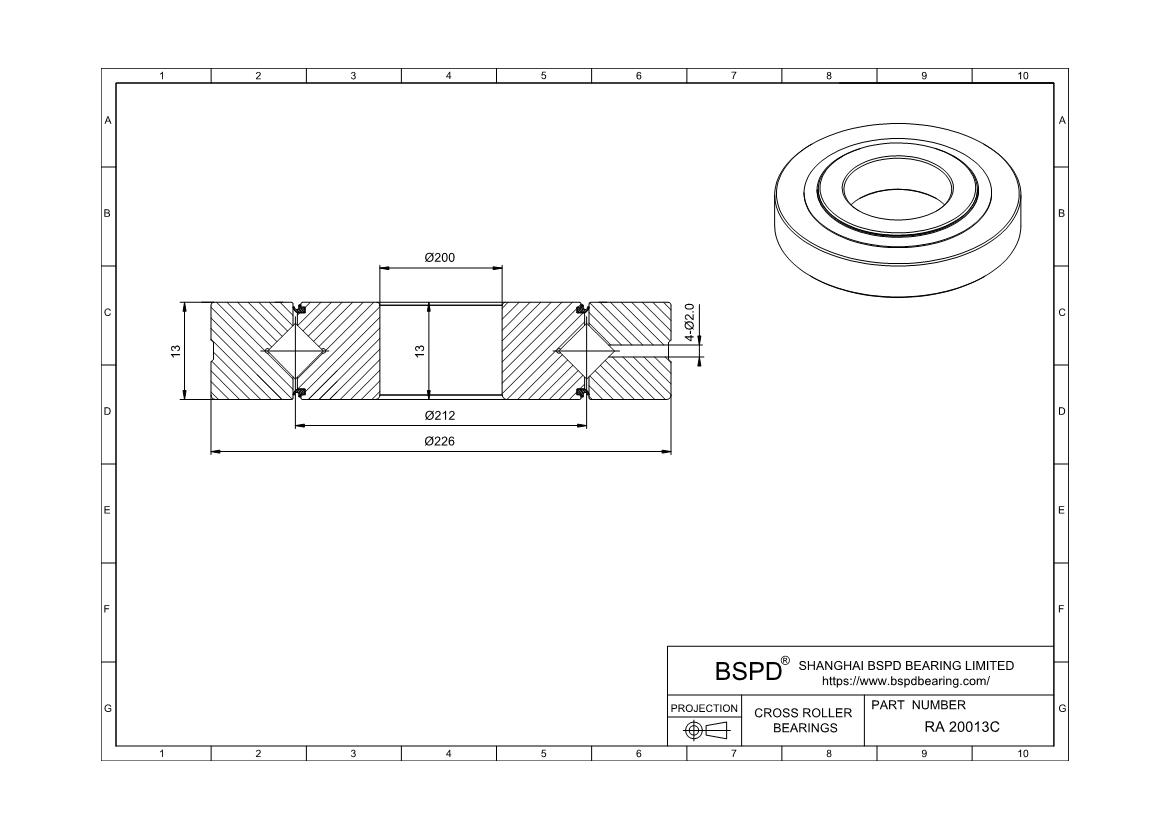

RA20013CUU Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 200 mm； Outer Diameter: 226 mm； Width (Thickness): 13 mm;

REQUEST FOR QUOTE

Product Attributes

Part Number	RA20013CUU
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Sealed
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	200
Mass(kg)	0.71
Bore Dia (d)	200
Outer Dia (D)	226
Width (B)	13
Greasing hole(a)
Greasing hole(b)
r(min)	0.5
Shoulder height ds(max)	205
Shoulder height Dh(min)	219
Basic load rating (radial)C kN	25.8
Basic load rating (radial)Co kN	54.7

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
