RA17013CUU Crossed Roller TYPE

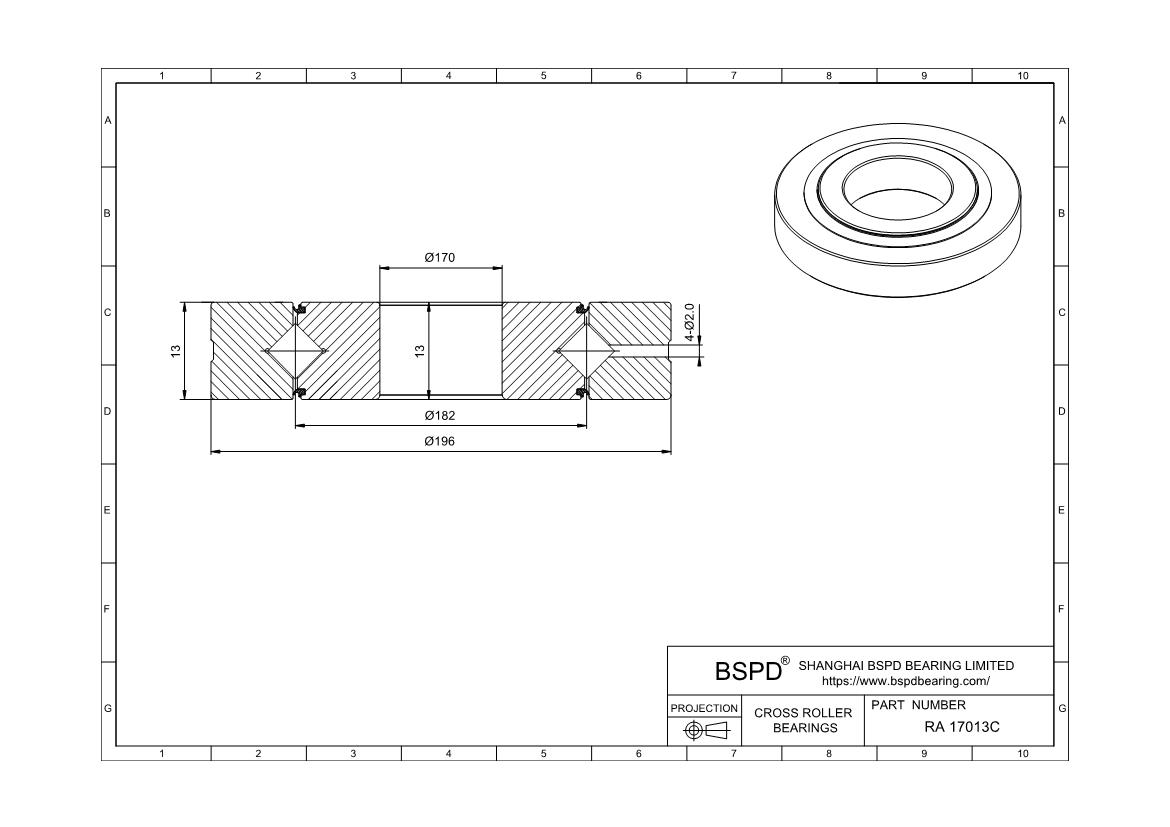

Dimensions: Bore (Inner) Diameter: 170 mm； Outer Diameter: 196 mm； Width (Thickness): 13 mm;

REQUEST FOR QUOTE

Product Attributes

Part Number	RA17013CUU
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Sealed
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	170
Mass(kg)	0.64
Bore Dia (d)	170
Outer Dia (D)	196
Width (B)	13
Greasing hole(a)
Greasing hole(b)
r(min)	0.5
Shoulder height ds(max)	175
Shoulder height Dh(min)	189
Basic load rating (radial)C kN	23.5
Basic load rating (radial)Co kN	46.5

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of Crossed Roller Bearings RA17013CUU ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
