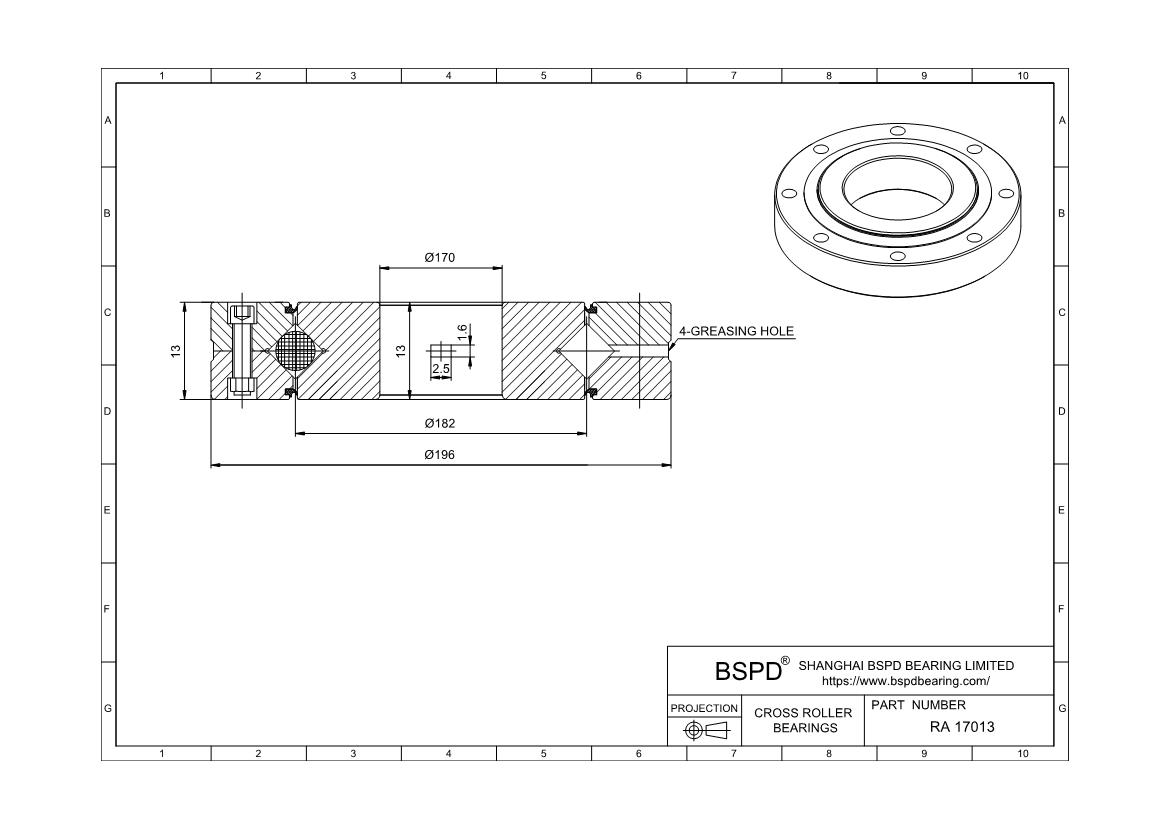

RA17013 Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 170 mm； Outer Diameter: 196 mm； Width (Thickness): 13 mm;

REQUEST FOR QUOTE

Product Attributes

Part Number	RA17013
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Open
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	170
Mass(kg)	0.64
Bore Dia (d)	170
Outer Dia (D)	196
Width (B)	13
Greasing hole(a)	2.5
Greasing hole(b)	1.6
r(min)	0.8
Shoulder height ds(max)	175
Shoulder height Dh(min)	189
Basic load rating (radial)C kN	23.5
Basic load rating (radial)Co kN	46.5
