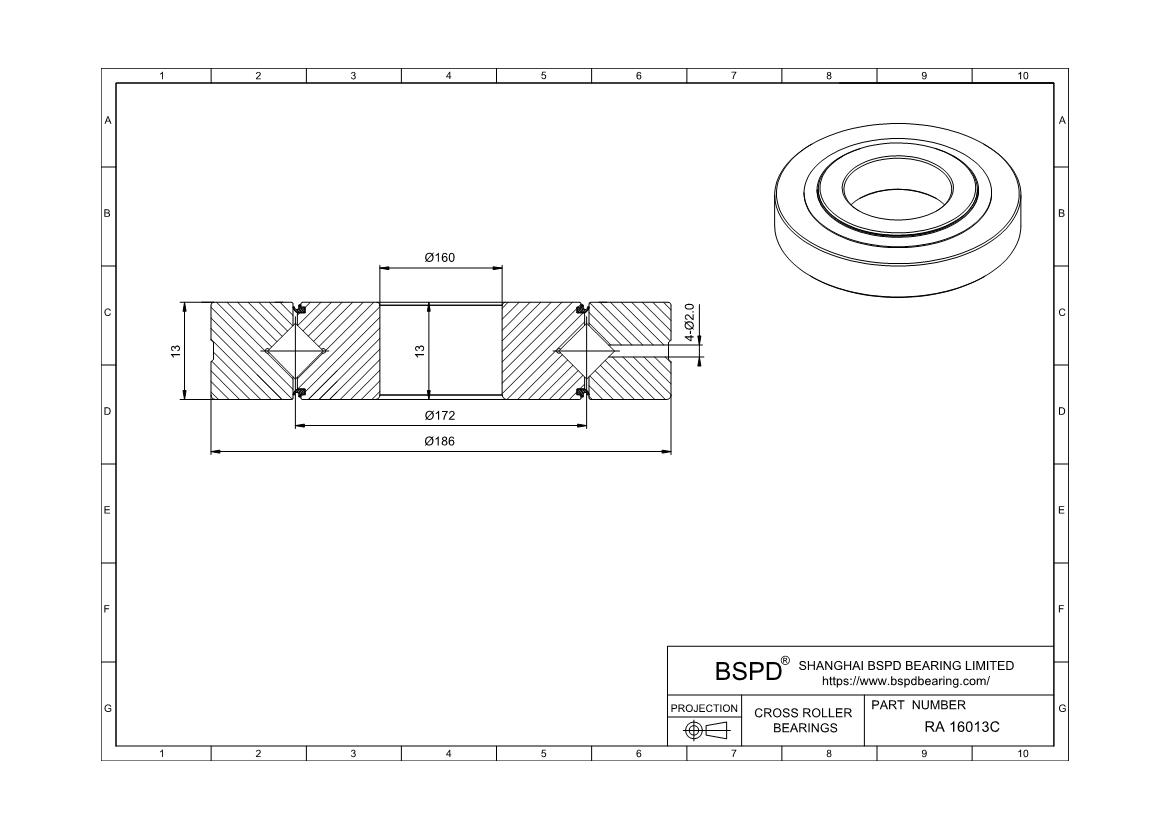

RA16013CUU Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 160 mm； Outer Diameter: 186 mm； Width (Thickness): 13 mm;

REQUEST FOR QUOTE

Product Attributes

Part Number	RA16013CUU
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Sealed
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	160
Mass(kg)	0.59
Bore Dia (d)	160
Outer Dia (D)	186
Width (B)	13
Greasing hole(a)
Greasing hole(b)
r(min)	0.5
Shoulder height ds(max)	165
Shoulder height Dh(min)	179
Basic load rating (radial)C kN	23.3
Basic load rating (radial)Co kN	44.9

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
