RA15008CUU Crossed Roller TYPE

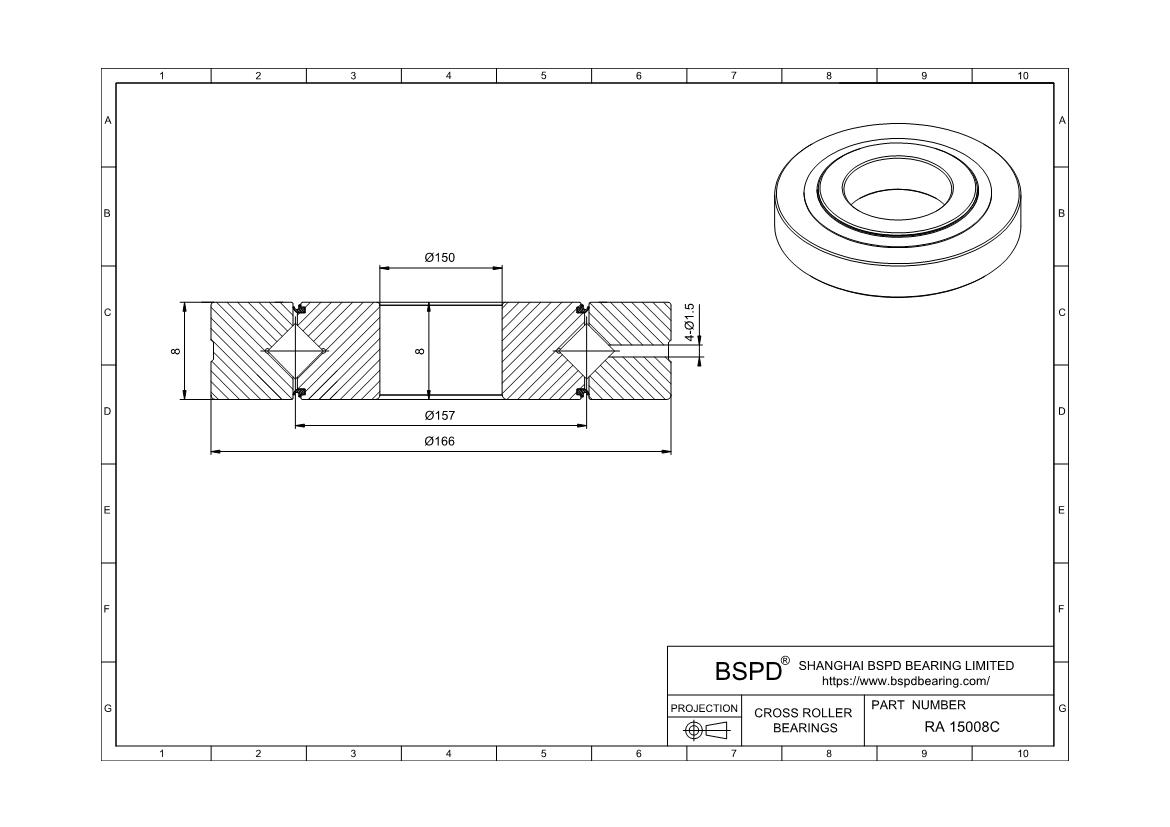

Dimensions: Bore (Inner) Diameter: 150 mm； Outer Diameter: 166 mm； Width (Thickness): 8 mm;

REQUEST FOR QUOTE

Product Attributes

Part Number	RA15008CUU
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Sealed
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	150
Mass(kg)	0.2
Bore Dia (d)	150
Outer Dia (D)	166
Width (B)	8
Greasing hole(a)
Greasing hole(b)
r(min)	0.5
Shoulder height ds(max)	153.5
Shoulder height Dh(min)	160.5
Basic load rating (radial)C kN	8.82
Basic load rating (radial)Co kN	20.6

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of Crossed Roller Bearings RA15008CUU ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
