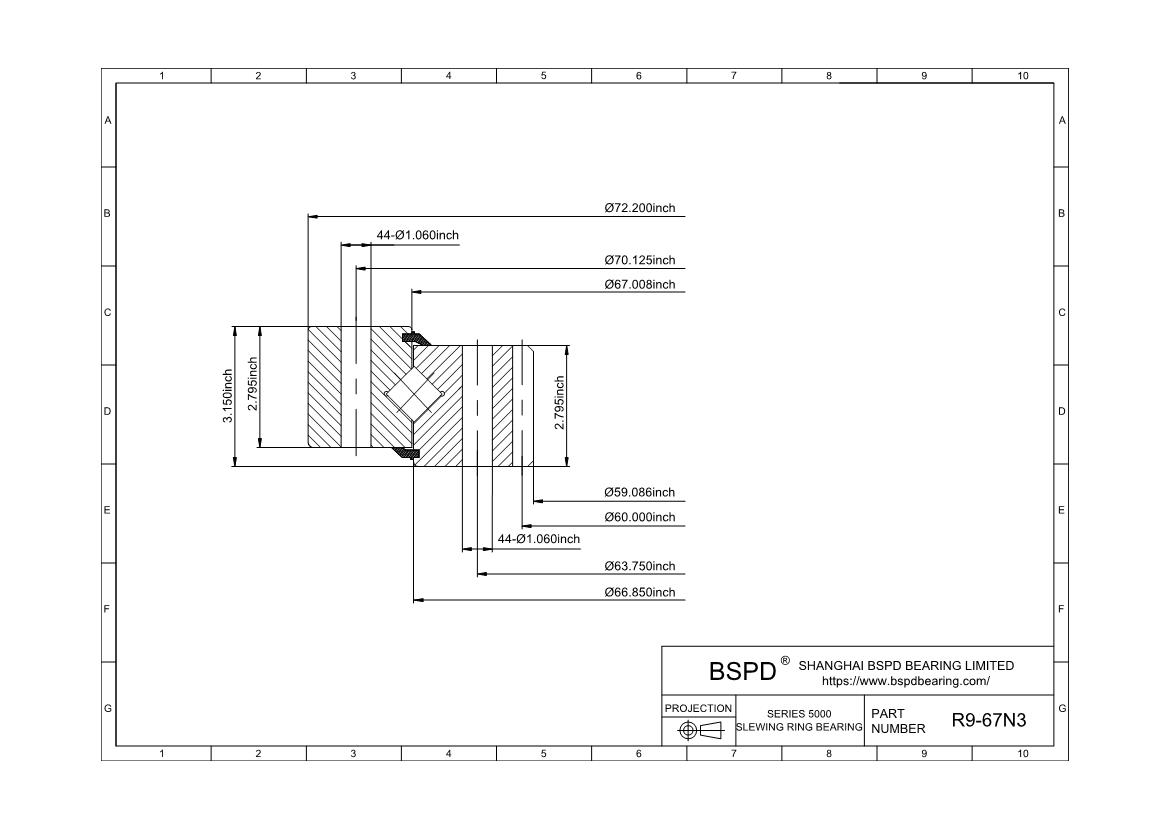

R9-67N3
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 59.086"； Outer Diameter: 72.2"； Width (Thickness): 3.150";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | R9-67N3 |
| Raceway Moment (ft-lbs) | 1217000 |
| Compressive Thrust(lbs) | 894800 |
| Weight(lbs) | 930 |
| Outline Dimensions(inches) | |
| OD | 72.20 |
| ID | 59.086 |
| OI | 67.008 |
| IO | 66.850 |
| HT | 3.150 |
| OH | 2.795 |
| IH | 2.795 |
| PD | 60.000 |
| DP | 1.75 |
| Mounting Holes | |
| OBC | 70.125 |
| OU | 1.06 |
| No of OBC Holes | 44 |
| IBC | 63.750 |
| IU | 1.06 |
| No of IBC Holes | 44 |
| Gear Data | |
| Tooth From 20 | Stub |
| Gear Hardness(BHN) | 250-300 |
| F | 2.795 |
| NO of Teeth | 105 |
| Max.allow tang.tooth load(lbs) | 32000 |
