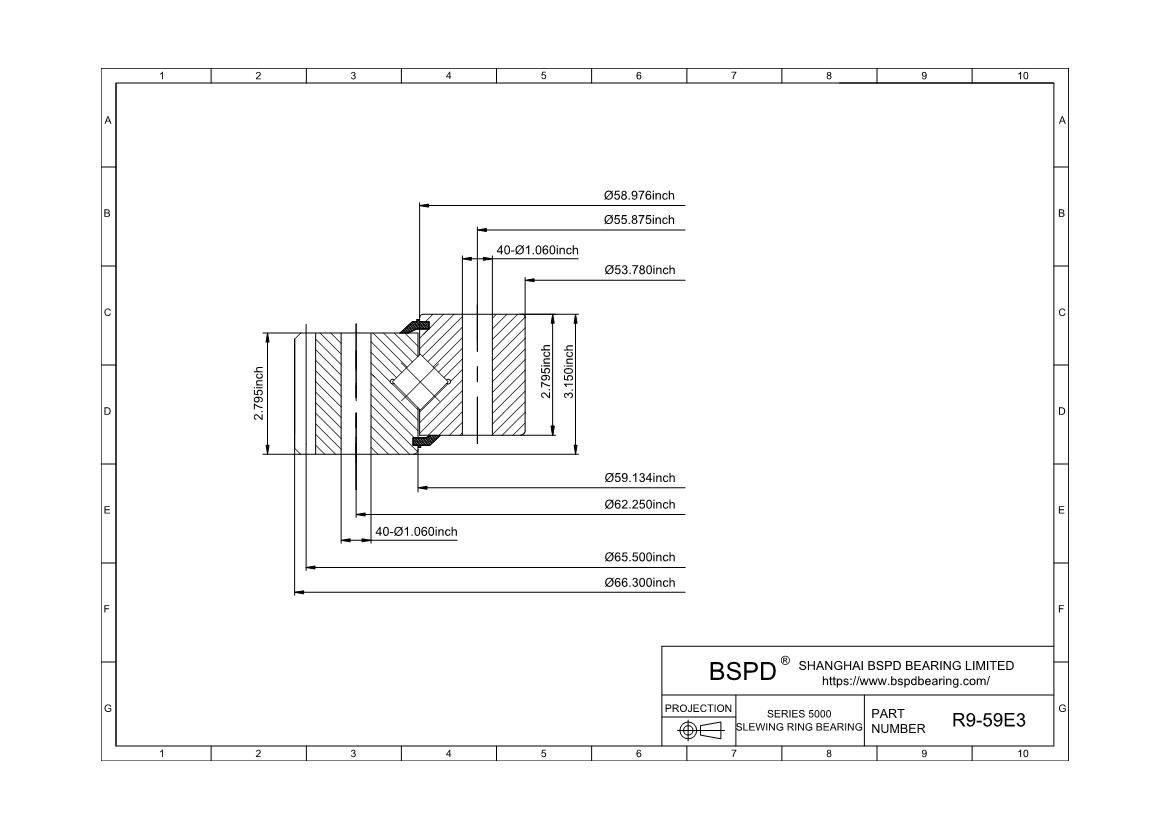

R9-59E3
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 53.78"； Outer Diameter: 66.3"； Width (Thickness): 3.150";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | R9-59E3 |
| Raceway Moment (ft-lbs) | 829800 |
| Compressive Thrust(lbs) | 741900 |
| Weight(lbs) | 776 |
| Outline Dimensions(inches) | |
| OD | 66.300 |
| ID | 53.78 |
| OI | 59.134 |
| IO | 58.976 |
| HT | 3.150 |
| OH | 2.795 |
| IH | 2.795 |
| PD | 65.500 |
| DP | 2 |
| Mounting Holes | |
| OBC | 62.250 |
| OU | 1.06 |
| No of OBC Holes | 40 |
| IBC | 55.875 |
| IU | 1.06 |
| No of IBC Holes | 40 |
| Gear Data | |
| Tooth From 20 | Stub |
| Gear Hardness(BHN) | 250-300 |
| F | 2.795 |
| NO of Teeth | 131 |
| Max.allow tang.tooth load(lbs) | 24900 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings R9-59E3 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
