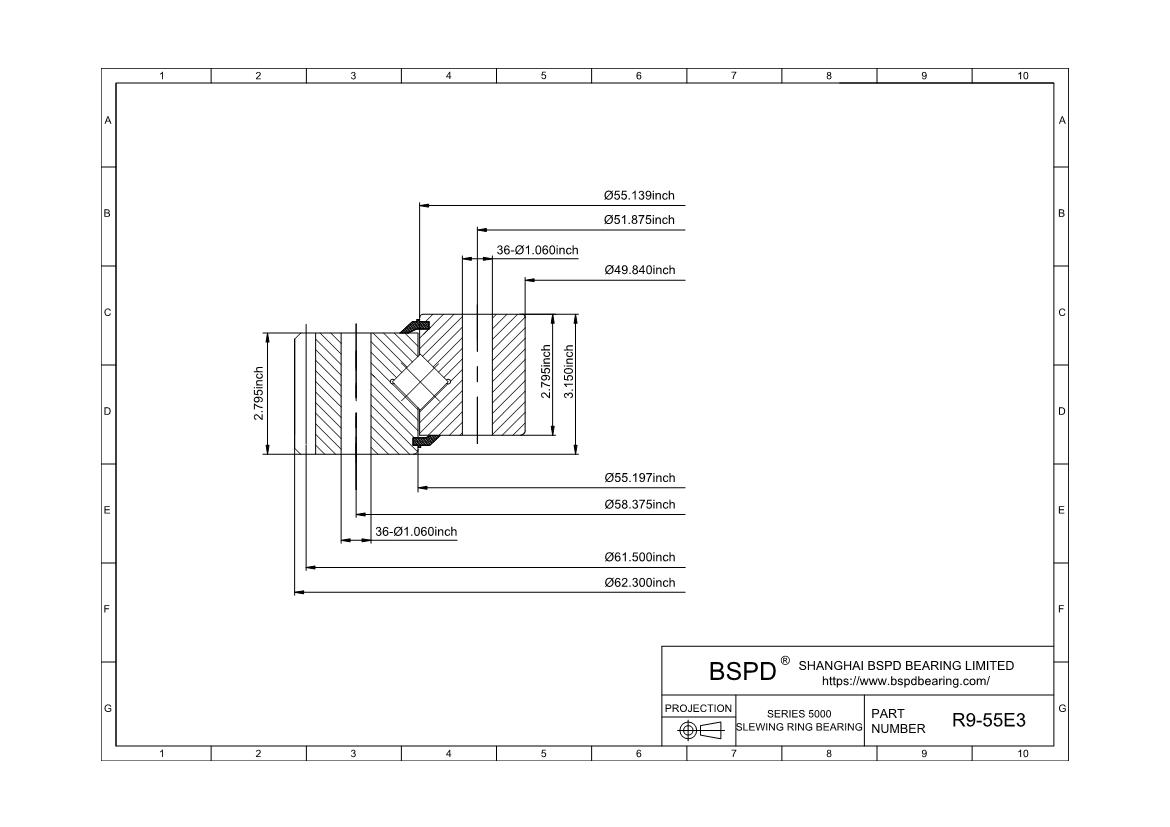

R9-55E3
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 49.84"； Outer Diameter: 62.3"； Width (Thickness): 3.150";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | R9-55E3 |
| Raceway Moment (ft-lbs) | 829800 |
| Compressive Thrust(lbs) | 741900 |
| Weight(lbs) | 776 |
| Outline Dimensions(inches) | |
| OD | 62.300 |
| ID | 49.84 |
| OI | 55.197 |
| IO | 55.139 |
| HT | 3.150 |
| OH | 2795 |
| IH | 2.795 |
| PD | 61.500 |
| DP | 2 |
| Mounting Holes | |
| OBC | 58.375 |
| OU | 1.06 |
| No of OBC Holes | 36 |
| IBC | 51.875 |
| IU | 1.06 |
| No of IBC Holes | 36 |
| Gear Data | |
| Tooth From 20 | Stub |
| Gear Hardness(BHN) | 250-300 |
| F | 2.795 |
| NO of Teeth | 123 |
| Max.allow tang.tooth load(lbs) | 24800 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings R9-55E3 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
