R10ZZ
Deep Groove Ball Bearings

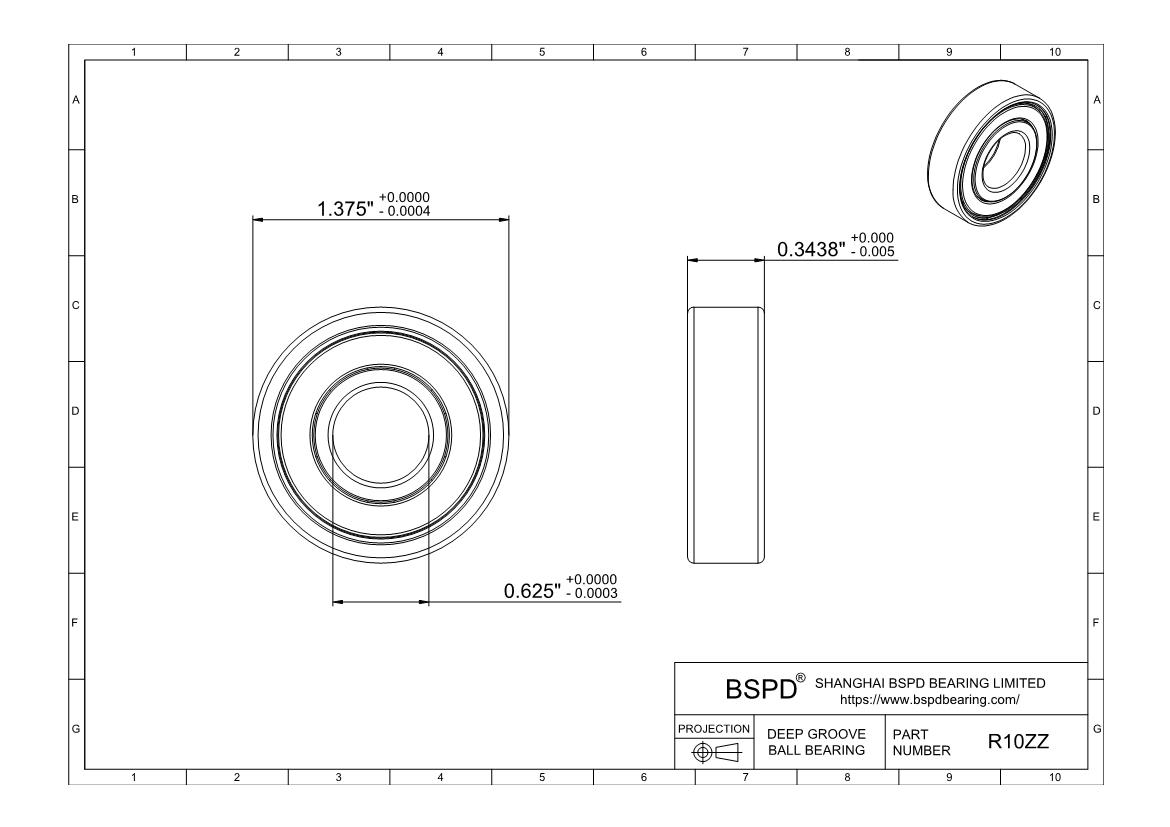

Dimensions: Bore (Inner) Diameter: 0.625"； Outer Diameter: 1.375"； Width (Thickness): 0.3438";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Shielded |
| Part Number | R10ZZ |
| For Shaft Diameter | 0.625" |
| Bore Dia (d) | 0.625" | 15.875 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| For Housing ID | 1.375" |
| Outer Dia (D) | 1.375" | 34.925 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width (B) | 0.3438" | 8.733 mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Load Rating (Cr) (lbs) | 1585 |
| Static Load Rating (Cor) (lbs) | 735 |
| Max Speed (Grease) (X1000 RPM) | 21 |
| Max Speed (Oil) (X1000 RPM) | 25 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.003mm to 0.018mm |
| RoHS | Compliant |
| Ball Qty | 10 |
| Ball Dia | 0.1875 |
| Weight (grams) | 38.1 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of ball bearings R10ZZ ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
