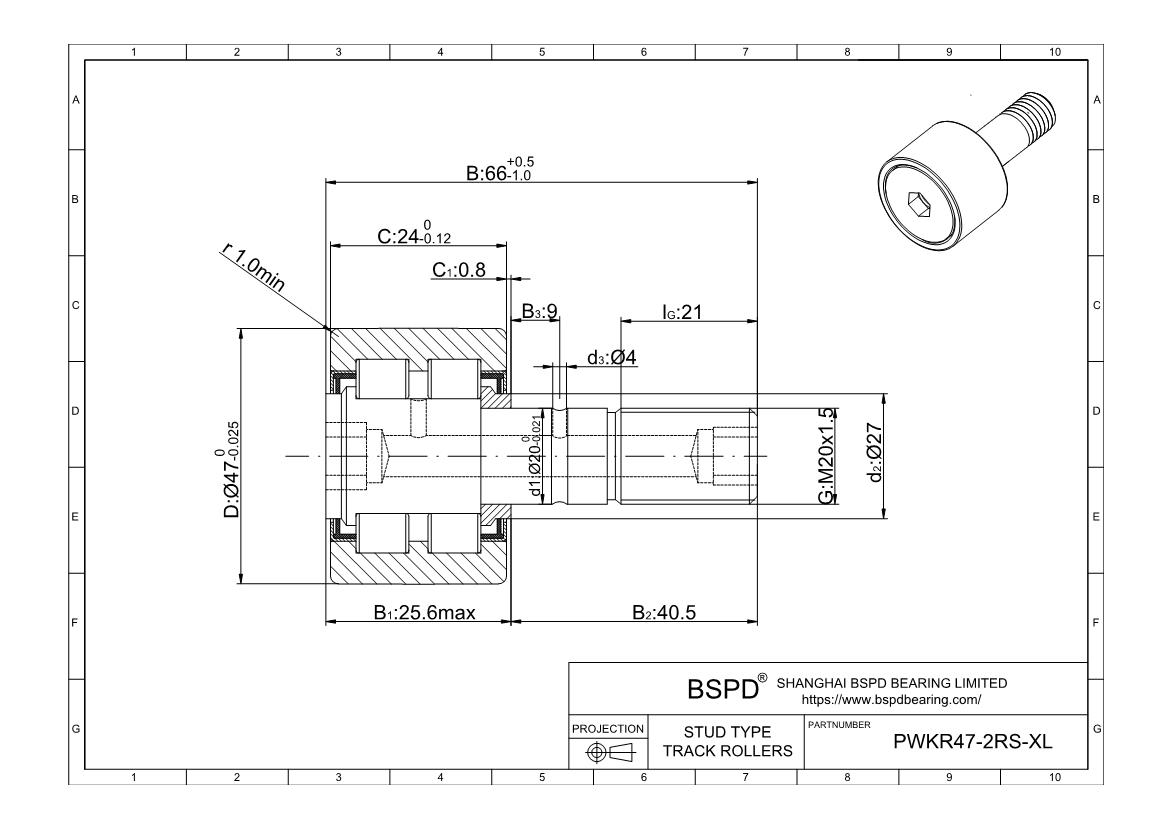

PWKR47-2RS-XL
Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 47 mm； Roller Width: ； Stud Dia: 20 mm； Stud Length: ；
REQUEST FOR QUOTE
Product Attributes
| Guide Roller Type | Track |
| Track Roller Type | Round |
| For Load Direction | Radial |
| Roller Profile | Flat |
| Roller Style | Threaded Stud |
| Roller Material | Steel |
| D | 47 mm |
| d1 | 20 mm |
| B | 66 mm |
| B1 max | 25,6 mm |
| B2 | 40.5 mm |
| B3 | 9 mm |
| C | 24 mm |
| C1 | 0,8 mm |
| d2 | 27 mm |
| d3 | 4 mm |
| G | M20x1,5 |
| IG | 21 mm |
| rmin | 1 mm |
| W | 10 mm |
| Cr w | 24500 N |
| Cur w | 3750 N |
| Maximum Speed | 3800 1/min |
| Temperature Range | -20 to 110 °C |
| Shaft Mount Type | Press Fit |
| Bearing Type | Needle Roller |
| With Seal | Yes |
| Lubrication | Required |
| RoHS | Compliant |
| Weight (g) | 380 |
