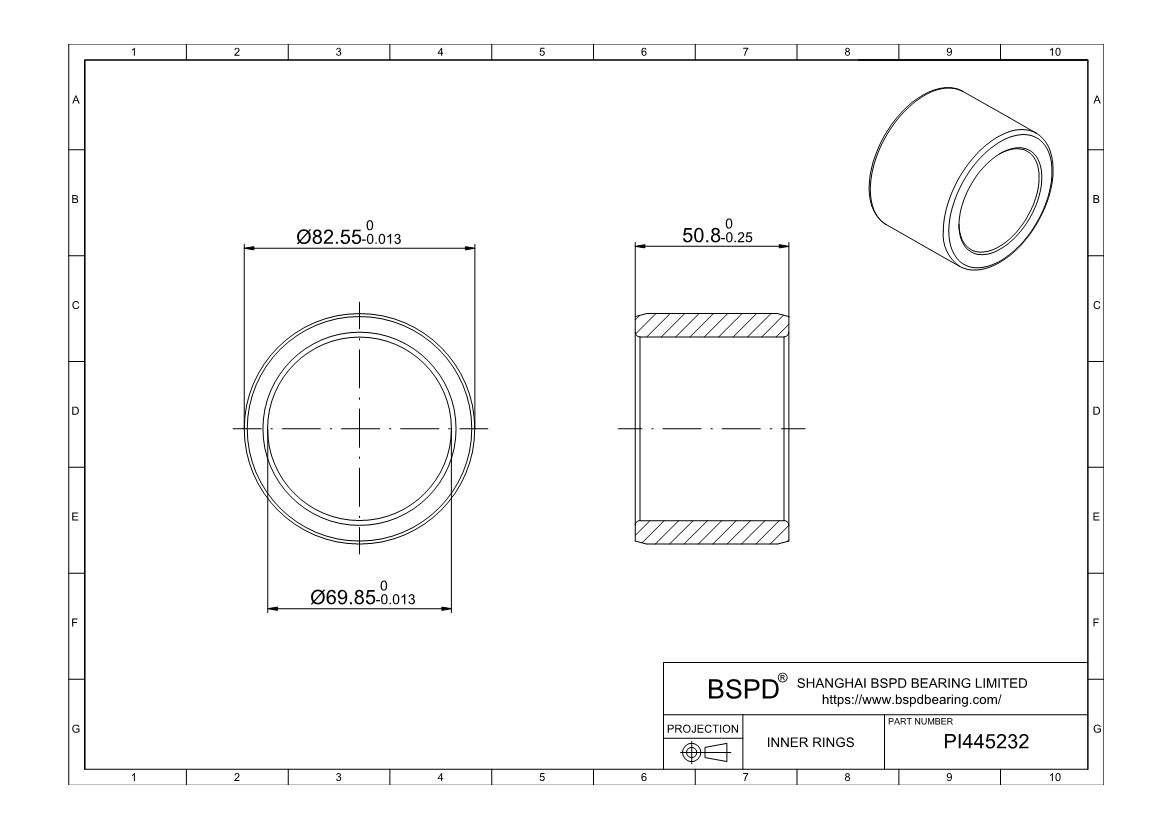

PI445232
Inner Rings
Dimensions: Bore (Inner) Diameter: 2 3/4"； Outer Diameter: 3.25"； Width (Thickness): 2";
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Inch |
| Part Number | PI445232 |
| For Shaft Diameter | 2 3/4" | 69.85 mm |
| Bore Dia (d) | 2 3/4" | 69.85 mm |
| Bore Dia Tolerance | -0.013mm to 0 |
| Outer Dia | 3.25" |82.55 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width (B) | 2" | 50.8 mm |
| Width Tolerance | -0.25mm to 0 |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 585 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings PI445232 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
