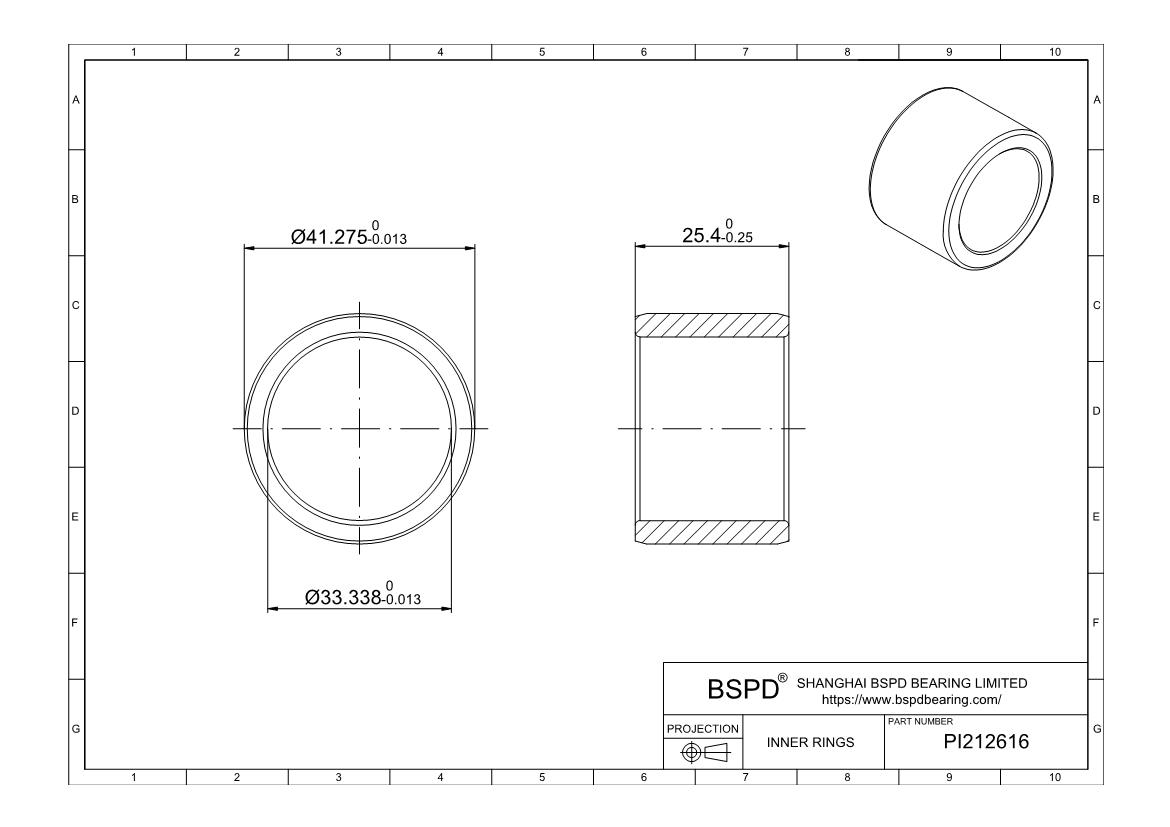

PI212616
Inner Rings
Dimensions: Bore (Inner) Diameter: 1 5/16"； Outer Diameter: 1.625"； Width (Thickness): 1";
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Inch |
| Part Number | PI212616 |
| For Shaft Diameter | 1 5/16" | 33.338 mm |
| Bore Dia (d) | 1 5/16" | 33.338 mm |
| Bore Dia Tolerance | -0.013mm to 0 |
| Outer Dia | 1.625" | 41.275 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width (B) | 1" | 25.4 mm |
| Width Tolerance | -0.25mm to 0 |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 88.3 |
Print PDF
Request a 3D CAD Model
