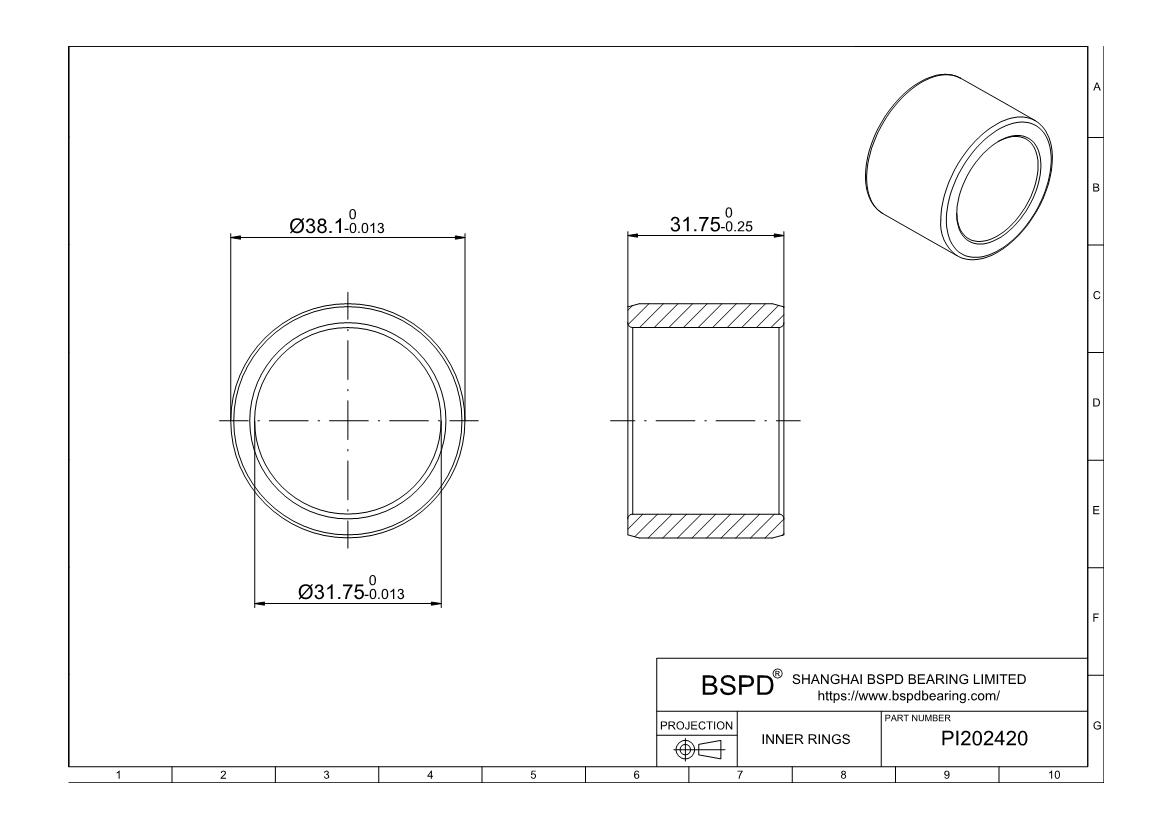

PI202420
Inner Rings
Dimensions: Bore (Inner) Diameter: 1 1/4"； Outer Diameter: 1.5"； Width (Thickness): 1.25";
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Inch |
| Part Number | PI202420 |
| For Shaft Diameter | 1 1/4" | 31.75 mm |
| Bore Dia (d) | 1 1/4" | 31.75 mm |
| Bore Dia Tolerance | -0.013mm to 0 |
| Outer Dia | 1.5" | 38.1 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width (B) | 1.25" | 31.75 mm |
| Width Tolerance | -0.25mm to 0 |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 82.7 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings PI202420 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
