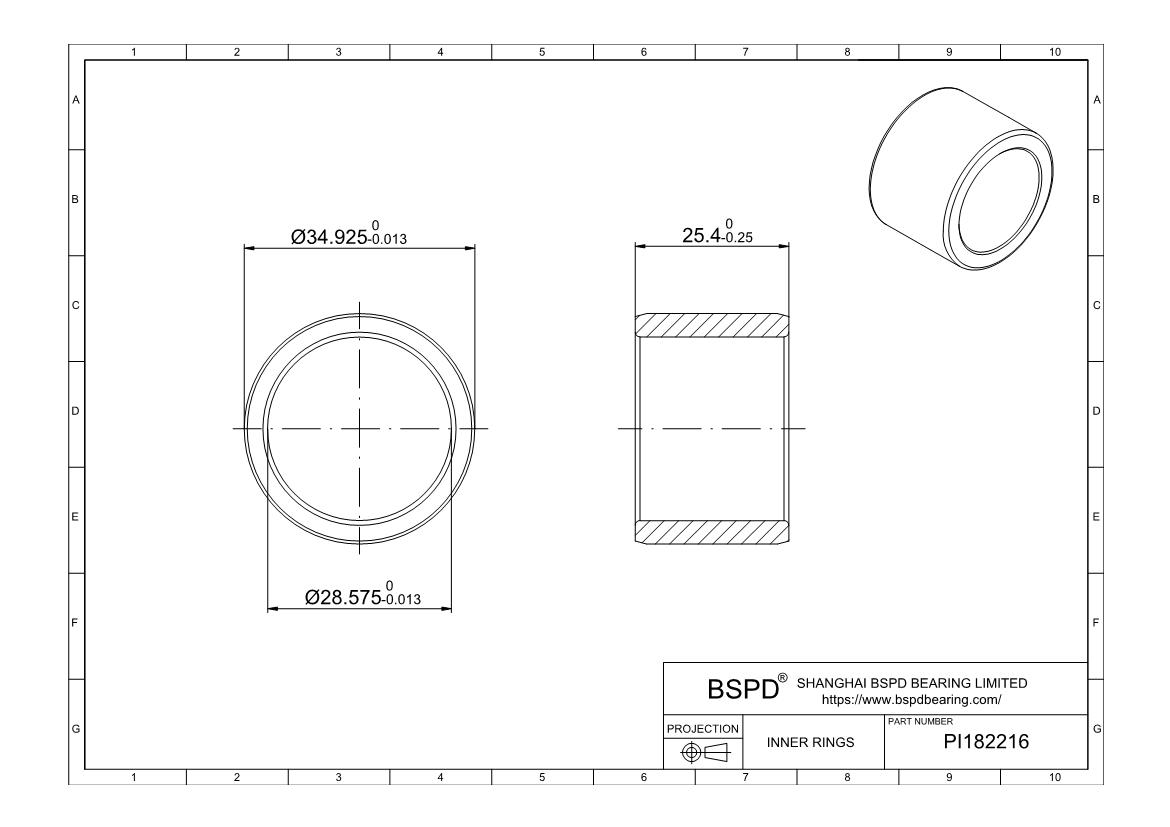

PI182216
Inner Rings
Dimensions: Bore (Inner) Diameter: 1 1/8"； Outer Diameter: 1.375"； Width (Thickness): 1";
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Inch |
| Part Number | PI182216 |
| For Shaft Diameter | 1 1/8" | 28.575 mm |
| Bore Dia (d) | 1 1/8" | 28.575 mm |
| Bore Dia Tolerance | -0.013mm to 0 |
| Outer Dia | 1.375" | 34.925 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width (B) | 1" | 25.4 mm |
| Width Tolerance | -0.25mm to 0 |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 58.9 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings PI182216 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
