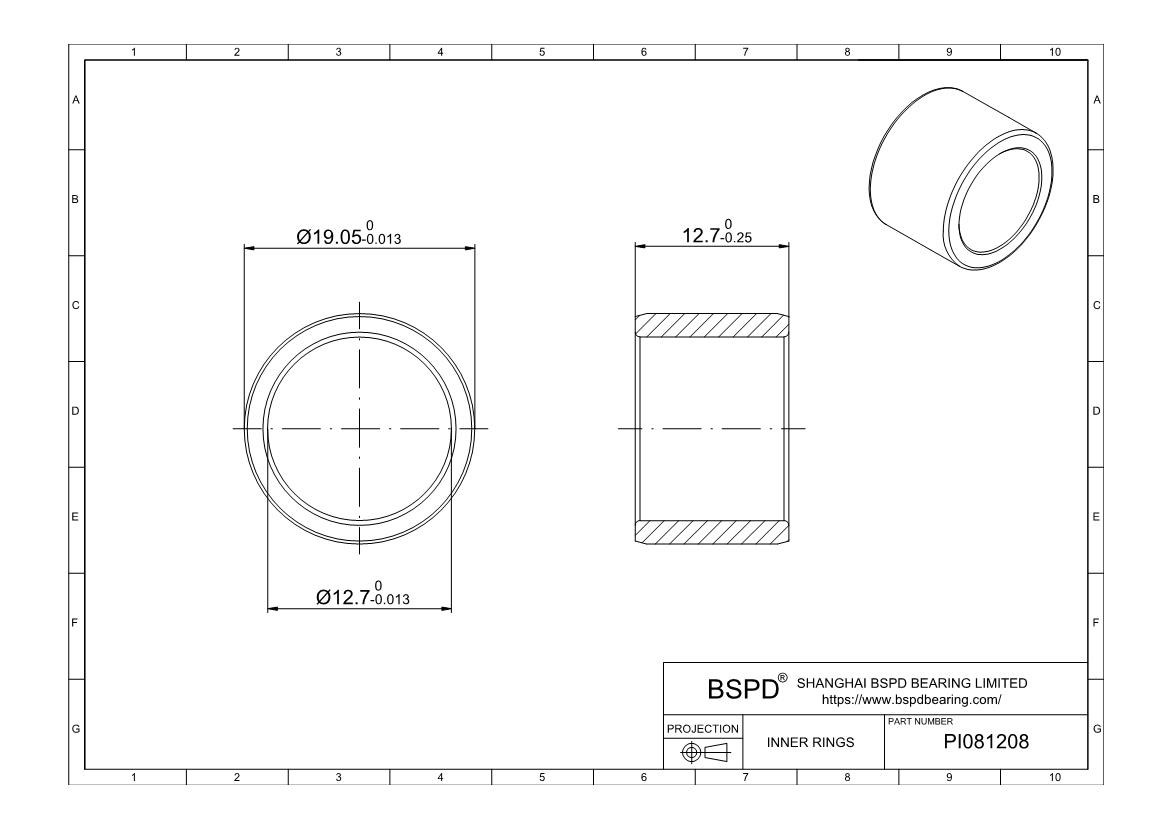

PI081208
Inner Rings
Dimensions: Bore (Inner) Diameter: 1/2"； Outer Diameter: 0.75"； Width (Thickness): 0.5";
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Inch |
| Part Number | PI081208 |
| For Shaft Diameter | 1/2" | 12.7 mm |
| Bore Dia (d) | 1/2" | 12.7 mm |
| Bore Dia Tolerance | -0.013mm to 0 |
| Outer Dia | 0.75" |19.05 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width (B) | 0.5" | 12.7 mm |
| Width Tolerance | -0.25mm to 0 |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 15 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings PI081208 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
