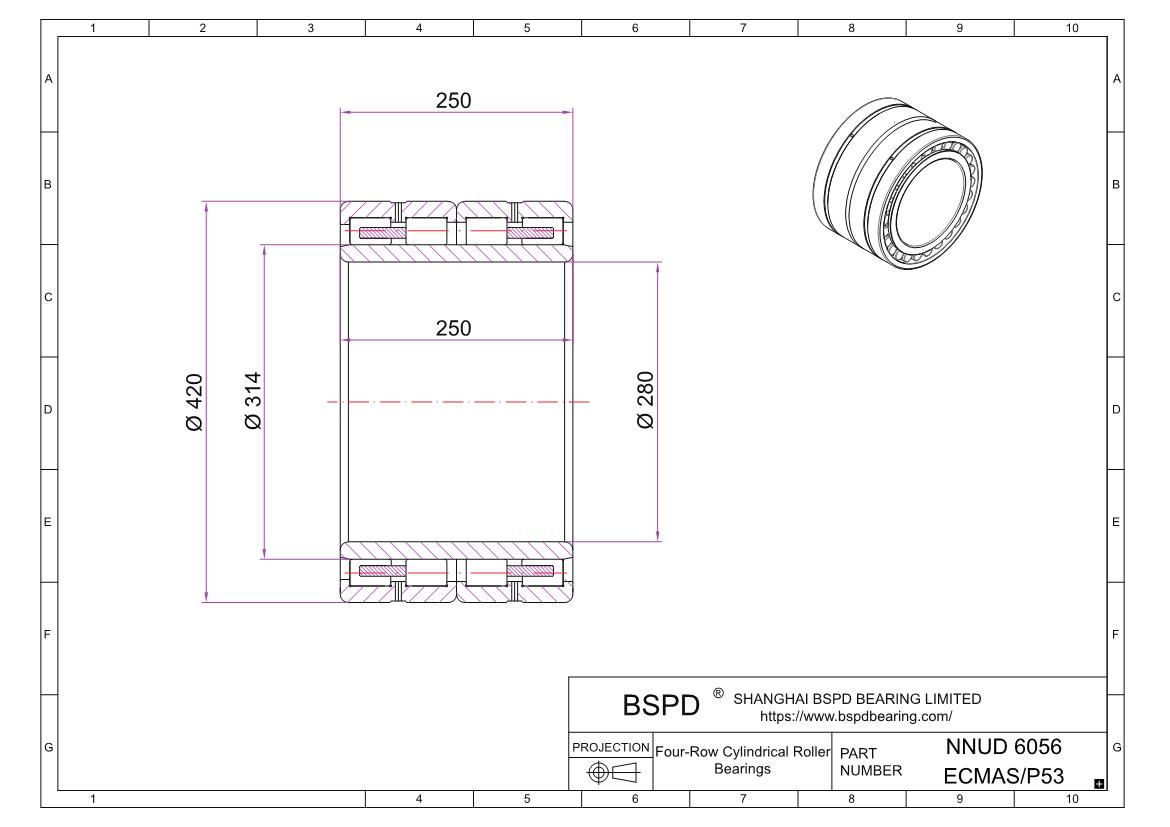

NNUD 6056 ECMAS/P53 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 280 mm； Outer Diameter: 420 mm； Width (Thickness): ;

NNUD 6056 ECMAS/P53
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberNNUD 6056 ECMAS/P53
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia280 mm
Outer Dia420 mm
Total Bearing Width Over Inner Ring(S)(B)250 mm
Total Bearing Width Over Outer Ring(S)(C)250 mm
Dynamic Radial Load3690 kN
Static Radial Load6550 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)4 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)4 mm
Dynamic Load Rating3690 kN
Static Load Rating6550 kN
Fatigue Load Limit(Pu)640 kN
Static Load Rating 6000~7000 kN
Mass Bearing133 kg
Raceway Diameter Inner Ring(F)314 mm
Design Variant/FeatureBC4.13/W
Outer Ring Shoulder Diameter(D1)377.8 mm
Permissible Axial Displacement(S)3 mm
NNUD 6056 ECMAS/P53
