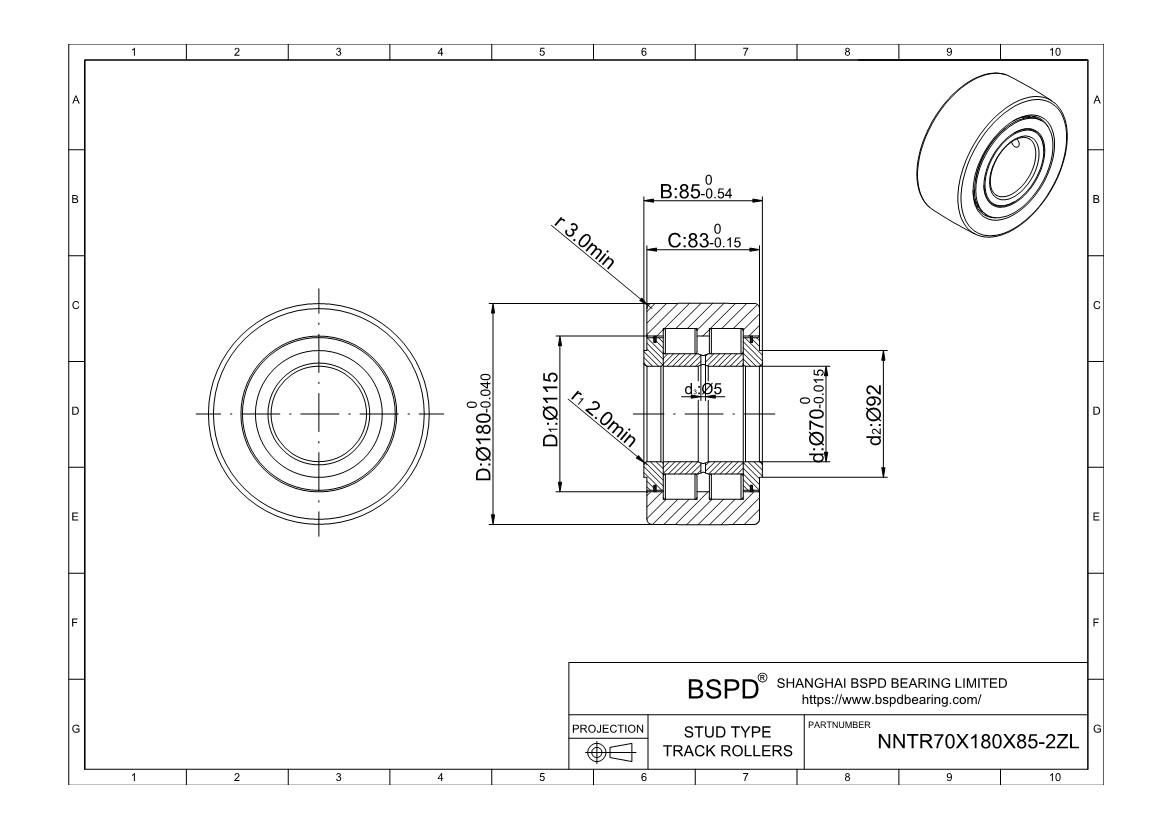

NNTR70X180X85-2ZL
Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 180 mm； Roller Width: 83 mm； Stud Dia: ； Stud Length: ；
REQUEST FOR QUOTE
Product Attributes
| Guide Roller Type | Track |
| Track Roller Type | Round |
| For Load Direction | Radial |
| Roller Profile | Flat |
| Roller Style | Yoke |
| Roller Material | Steel |
| d | 70 mm |
| D | 180 mm |
| B | 85 mm |
| C | 83 mm |
| D1 | 115 mm |
| d2 | 92 mm |
| d3 | 5 mm |
| R | 10000 mm |
| r1 min | 2 mm |
| rmin | 3 mm |
| Cr w | 355000 N |
| Cur w | 75000 N |
| Maximum Speed | 600 1/min |
| Temperature Range | -20 to 110 °C |
| Shaft Mount Type | Press Fit |
| Bearing Type | Needle Roller |
| With Seal | Yes |
| Lubrication | Required |
| RoHS | Compliant |
| Weight (g) | 13000 |
Print PDF
Request a 3D CAD Model
