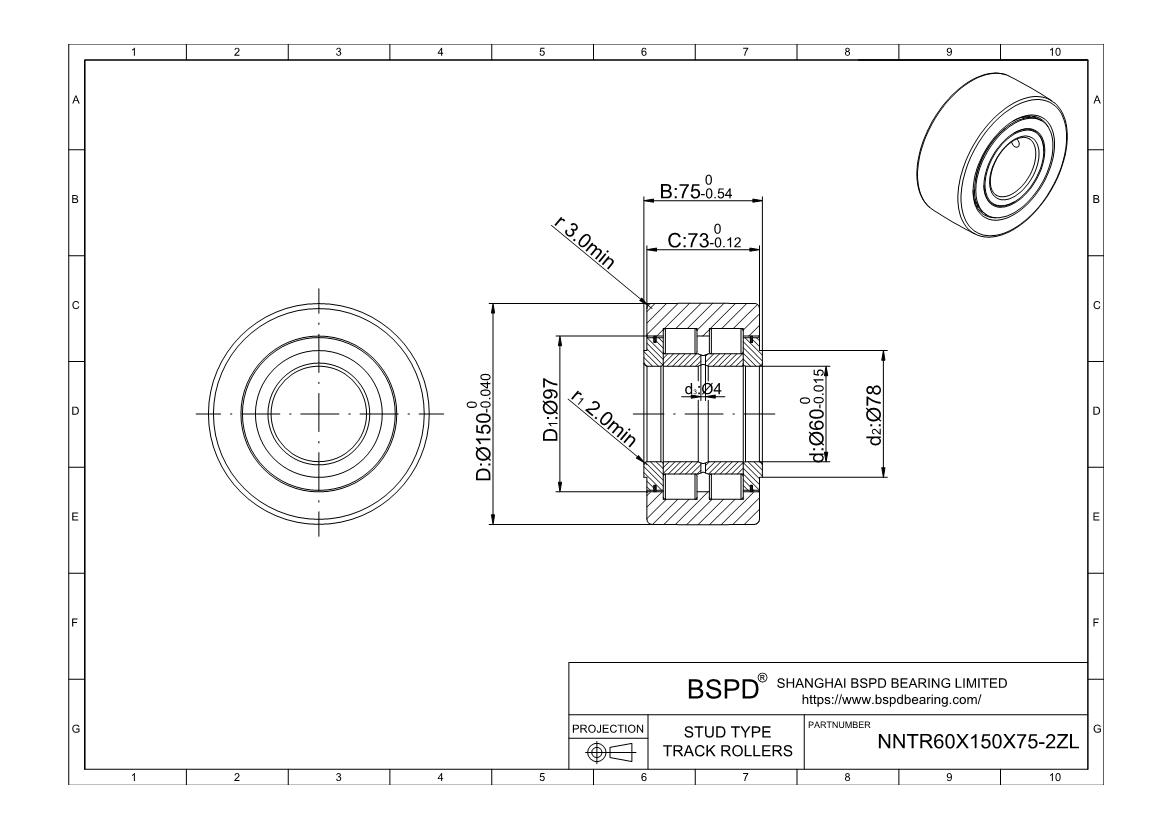

NNTR60X150X75-2ZL
Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 150 mm； Roller Width: 73 mm； Stud Dia: ； Stud Length: ；
REQUEST FOR QUOTE
Product Attributes
| Guide Roller Type | Track |
| Track Roller Type | Round |
| For Load Direction | Radial |
| Roller Profile | Flat |
| Roller Style | Yoke |
| Roller Material | Steel |
| d | 60 mm |
| D | 150 mm |
| B | 75 mm |
| C | 73 mm |
| D1 | 97 mm |
| d2 | 78 mm |
| d3 | 4 mm |
| R | 10000 mm |
| r1 min | 2 mm |
| rmin | 3 mm |
| Cr w | 255000 N |
| Cur w | 53000 N |
| Maximum Speed | 800 1/min |
| Temperature Range | -20 to 110 °C |
| Shaft Mount Type | Press Fit |
| Bearing Type | Needle Roller |
| With Seal | Yes |
| Lubrication | Required |
| RoHS | Compliant |
| Weight (g) | 7800 |
Print PDF
Request a 3D CAD Model
