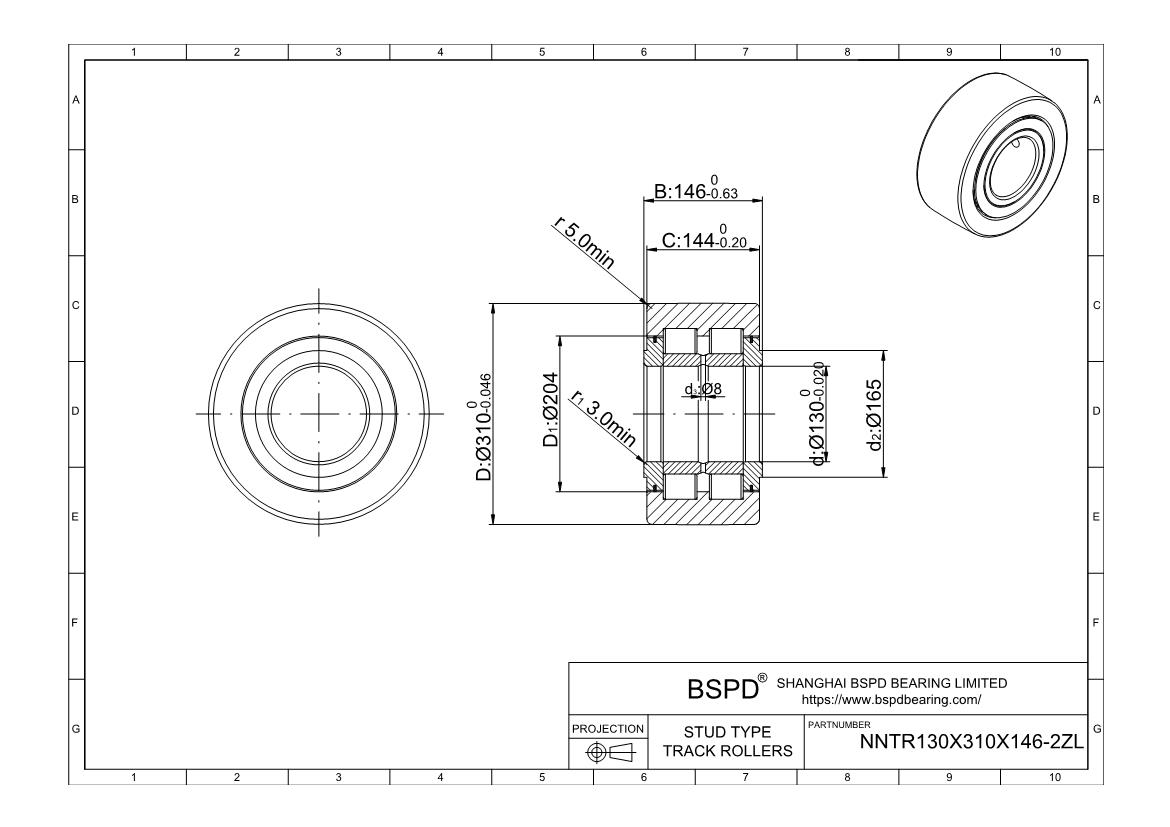

NNTR130X310X146-2ZL
Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 310 mm； Roller Width: 144 mm； Stud Dia: ； Stud Length: ；
REQUEST FOR QUOTE
Product Attributes
| Guide Roller Type | Track |
| Track Roller Type | Round |
| For Load Direction | Radial |
| Roller Profile | Flat |
| Roller Style | Yoke |
| Roller Material | Steel |
| d | 130 mm |
| D | 310 mm |
| B | 146 mm |
| C | 144 mm |
| D1 | 204 mm |
| d2 | 165 mm |
| d3 | 8 mm |
| R | 15000 mm |
| r1 min | 3 mm |
| rmin | 5 mm |
| Cr w | 1010000 N |
| Cur w | 216000 N |
| Maximum Speed | 240 1/min |
| Temperature Range | -20 to 110 °C |
| Shaft Mount Type | Press Fit |
| Bearing Type | Needle Roller |
| With Seal | Yes |
| Lubrication | Required |
| RoHS | Compliant |
| Weight (g) | 65200 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings NNTR130X310X146-2ZL ? Cam Followers, Yoke Type & Stud Type Track Rollers Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
