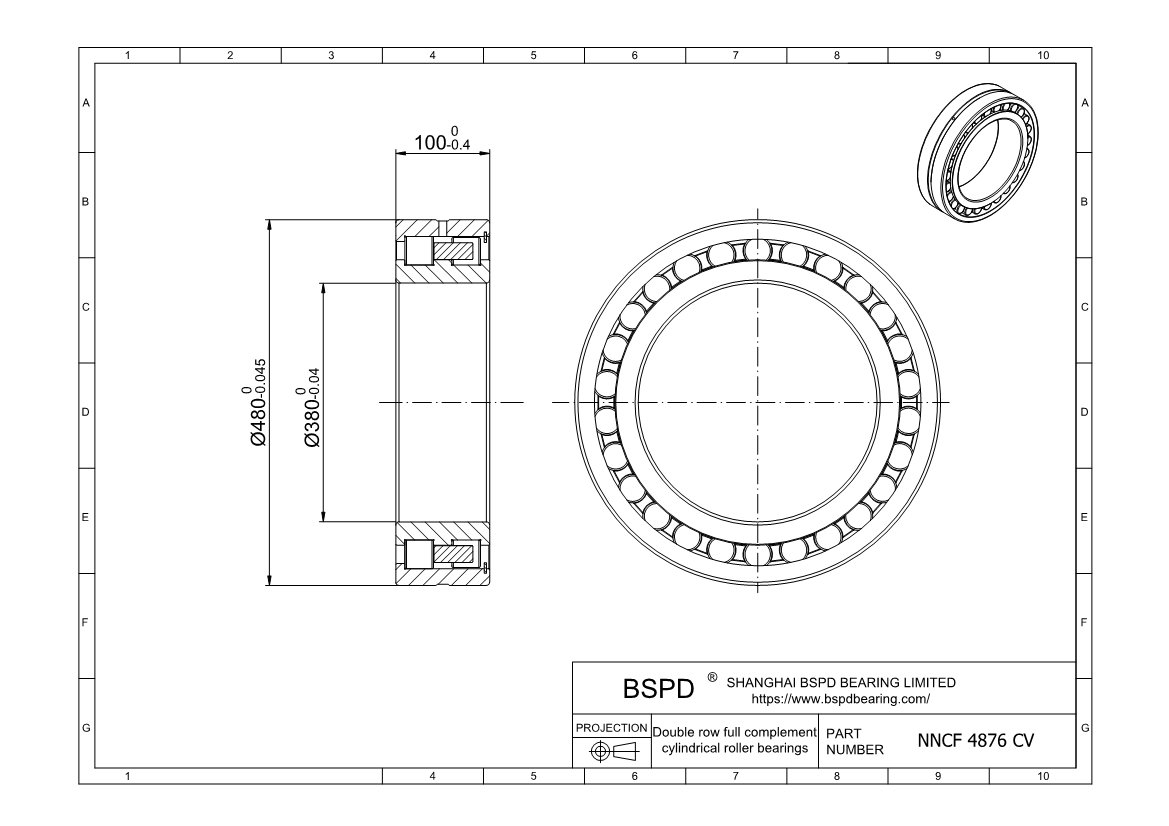

NNCF 4876 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 380 mm; Outer Diameter: 480 mm; Width (Thickness): 100 mm;
![NNCF 4876 CV](https://www.bspdbearing.com/wp-content/uploads/2022/08/Double-row-full-complement-cylindrical-roller-bearings.jpg)
REQUEST FOR QUOTE
Product Attributes
Product Number | NNCF 4876 CV |
Bore diameter | 380 mm |
Outside diameter | 480 mm |
Width | 100 mm |
Basic dynamic load rating | 1400 kN |
Basic static load rating | 3650 kN |
Fatigue load limit | 315 kN |
Reference speed | 530 r/min |
Limiting speed | 670 r/min |
Mass | 45 kg |
Shoulder diameter of inner ring | 419 mm |
Shoulder diameter of outer ring | 447 mm |
![NNCF 4876 CV](/wp-content/uploads/cylindrical/NNCF 4876 CV/1.jpg)
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 4876 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
