NCS4424
Heavy Duty Needle Roller Bearings (Machined)

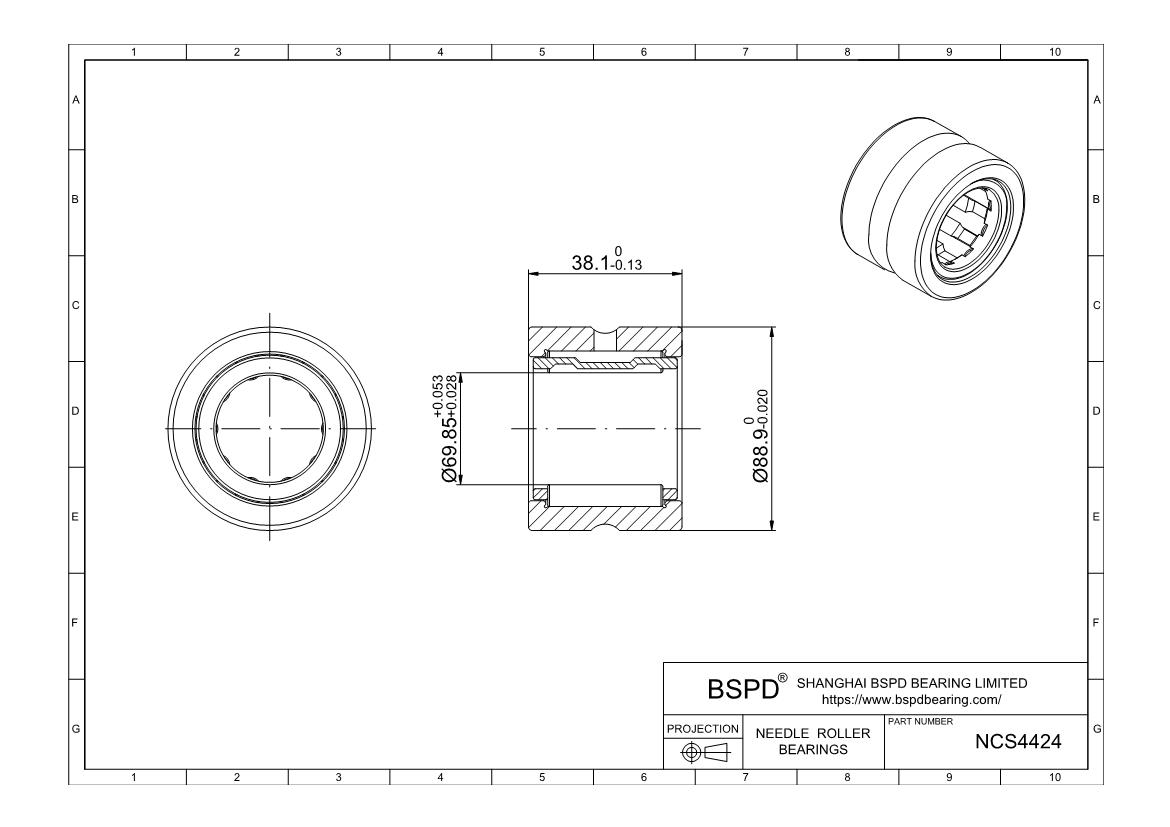

Dimensions: Bore (Inner) Diameter: 69,85 mm； Outer Diameter: 88,9 mm； Width (Thickness): 38,1 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| System of Measurement | Inch |
| Seal Type | Open |
| Part Number | NCS4424 |
| For Shaft Diameter | 69,85 mm |
| Bore Dia | 69,85 mm |
| Bore Dia Tolerance | 0.028mm to 0.053mm |
| For Housing ID | 88,9 mm |
| Outer Dia | 88,9 mm |
| Outer Dia Tolerance | -0.02mm to 0 |
| Width | 38,1 mm |
| Width Tolerance | -0.13mm to 0 |
| Ring Material | steel |
| Roller Material | steel |
| Cage Material | Steel |
| Dynamic Load Rating (Cr) (Newtons) | 100000 |
| Static Load Rating (Cor) (Newtons) | 201000 |
| Max Speed (Grease) (RPM) | 6600 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 503 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings NCS4424 ? Heavy Duty Needle Roller Bearings (Machined) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
