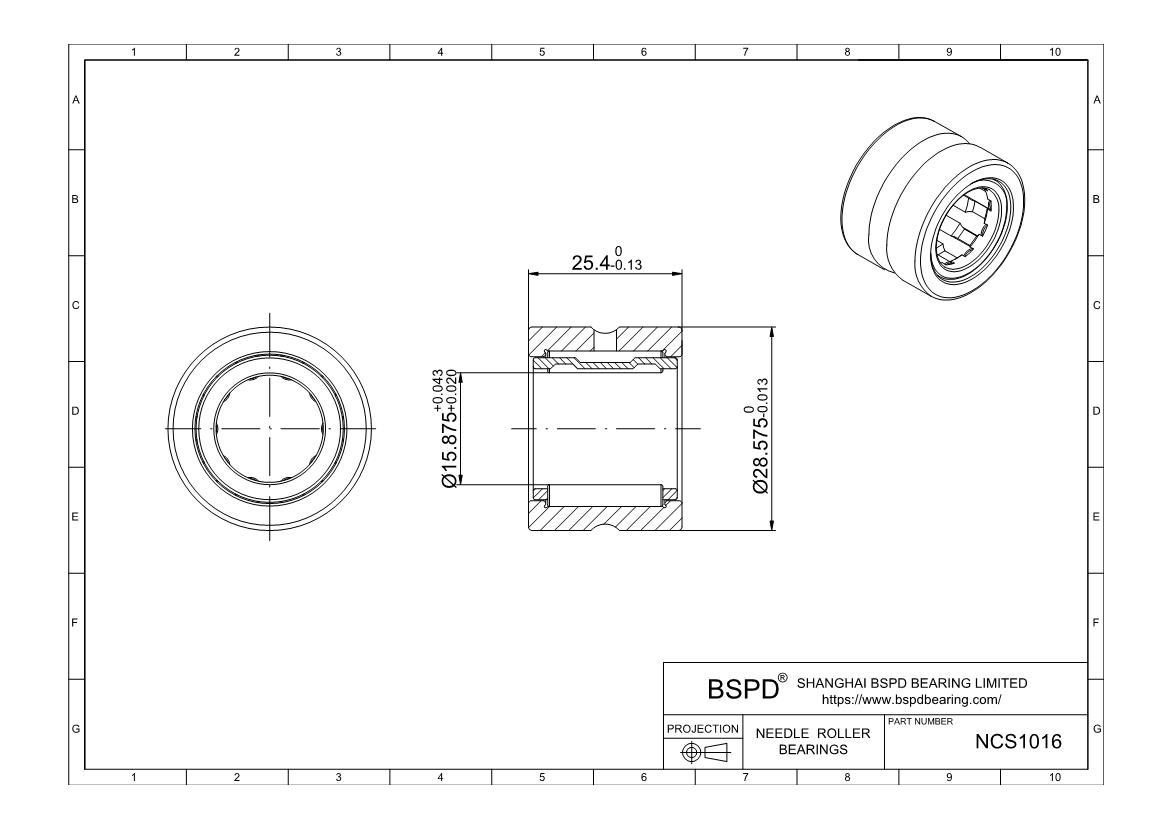

NCS1016
Heavy Duty Needle Roller Bearings (Machined)
Dimensions: Bore (Inner) Diameter: 15,875 mm； Outer Diameter: 28,575 mm； Width (Thickness): 25,4 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| System of Measurement | Inch |
| Seal Type | Open |
| Part Number | NCS1016 |
| For Shaft Diameter | 15,875 mm |
| Bore Dia | 15,875 mm |
| Bore Dia Tolerance | 0.02mm to 0.043mm |
| For Housing ID | 28,575 mm |
| Outer Dia | 28,575 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width | 25,4 mm |
| Width Tolerance | -0.13mm to 0 |
| Ring Material | steel |
| Roller Material | steel |
| Cage Material | Steel |
| Dynamic Load Rating (Cr) (Newtons) | 21100 |
| Static Load Rating (Cor) (Newtons) | 23000 |
| Max Speed (Grease) (RPM) | 22400 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 68 |
Print PDF
Request a 3D CAD Model
