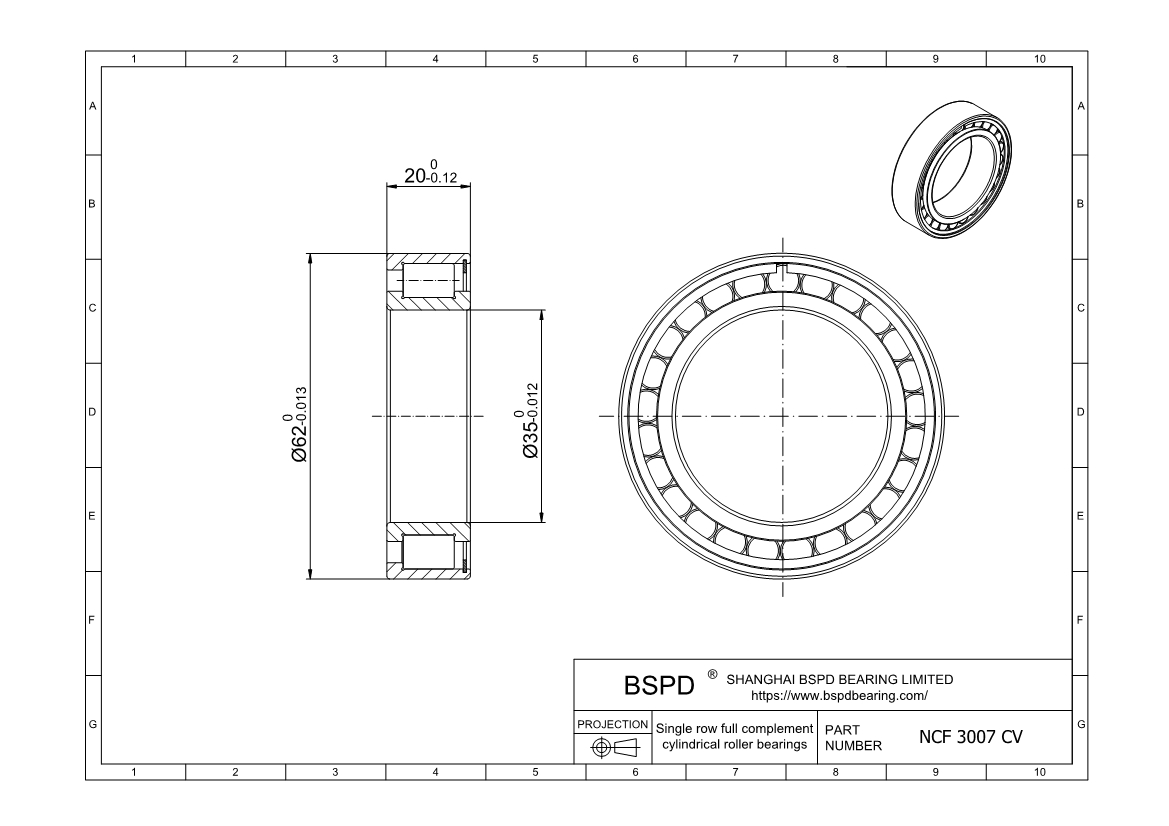

NCF 3007 CV High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 35 mm； Outer Diameter: 62 mm； Width (Thickness): 20 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NCF 3007 CV
Bore diameter	35 mm
Outside diameter	62 mm
Width	20 mm
Basic dynamic load rating	48.4 kN
Basic static load rating	56 kN
Fatigue load limit	6.55 kN
Reference speed	5300 r/min
Limiting speed	6700 r/min
Mass	0.26 kg
Shoulder diameter of inner ring	45 mm
Shoulder diameter of outer ring	51 mm
Raceway diameter	55.52 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NCF 3007 CV ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
